Left Rear Window Motor Connector End View

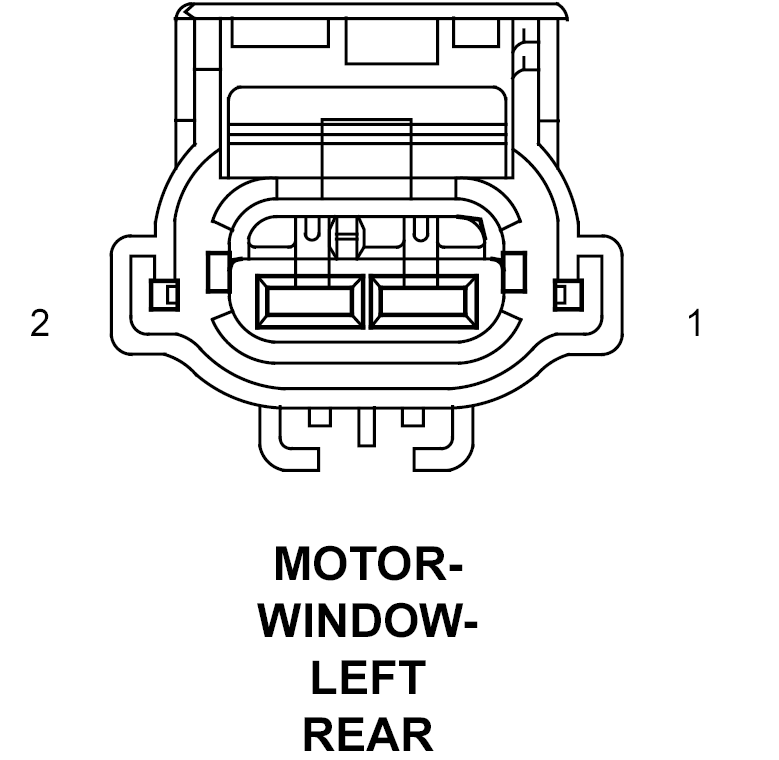

MOTOR-WINDOW-LEFT REAR - 2-WAY

GXK780288Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 Q111 16TN/YL LEFT REAR WINDOW DRIVER (UP)
2 Q211 16TN/LB LEFT REAR WINDOW DRIVER (DOWN)
