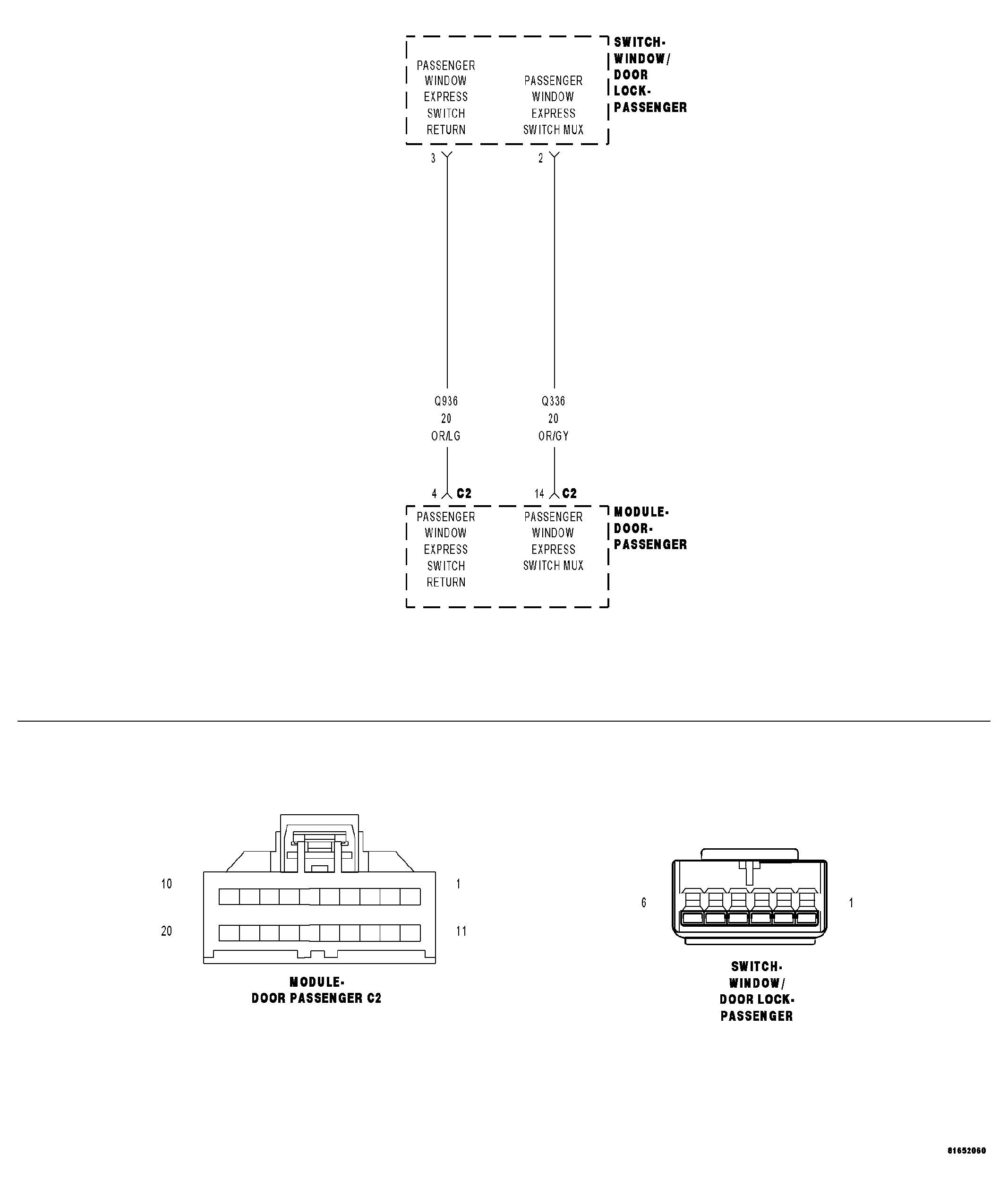

Home >> Jeep >> 2007 >> Commander Base, 4.7 N, AWD >> Repair and Diagnosis >> Body & Frame >> Windows >> Power Windows - Electrical Diagnostics >> Power Windows - Electrical Diagnostics >> DTC Troubleshooting >> B185D-Passenger Window Switch Circuit Stuck - PDM >> Circuit Schematic
