Section 1 (3.7L Engine (Service Information)): Manifolds: Manifold-Intake: Removal: Removal

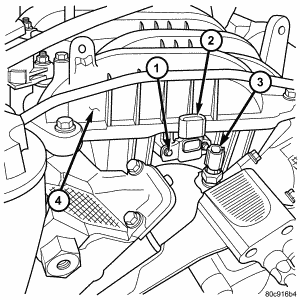

Fig 1: Map Sensor - 3.7L V-6

Courtesy of CHRYSLER LLC

1 - MOUNTING SCREWS

2 - MAP SENSOR

3 - ECT SENSOR

4 - FRONT OF INTAKE MANIFOLD

1. Perform the Fuel System Pressure Release procedure. Refer to STANDARD PROCEDURE .
2. Disconnect negative cable from battery.
3. Remove resonator assembly and air inlet hose.
4. Disconnect electrical connectors for the following components:
   1. Manifold Absolute Pressure (MAP) Sensor (2)
   Fig 2: View Of Throttle Body - 3.7L

   Courtesy of CHRYSLER LLC

   1 - THROTTLE BODY

   2 - MOUNTING BOLTS

   3 - ELEC. CONNECTOR

5. Disconnect vapor purge hose, brake booster hose, positive crankcase ventilation (PCV) hose.
6. Remove the generator. Refer to REMOVAL .
7. Remove the air conditioning compressor. Refer to REMOVAL .
8. Disconnect the ETC connector from the throttle body (3).
   Fig 3: EGR Solenoid/Tube Assembly

   Courtesy of CHRYSLER LLC
9. Disconnect and remove ignition coil towers.
10. Remove top oil dipstick tube retaining bolt.
11. Remove the EGR tube (1).
12. Remove the fuel rail.
    Fig 4: View Of Throttle Body - 3.7L

    Courtesy of CHRYSLER LLC

    1 - THROTTLE BODY

    2 - MOUNTING BOLTS

    3 - ELEC. CONNECTOR

13. Remove throttle body assembly (1).
14. Drain cooling system below coolant temperature level. Refer to STANDARD PROCEDURE .

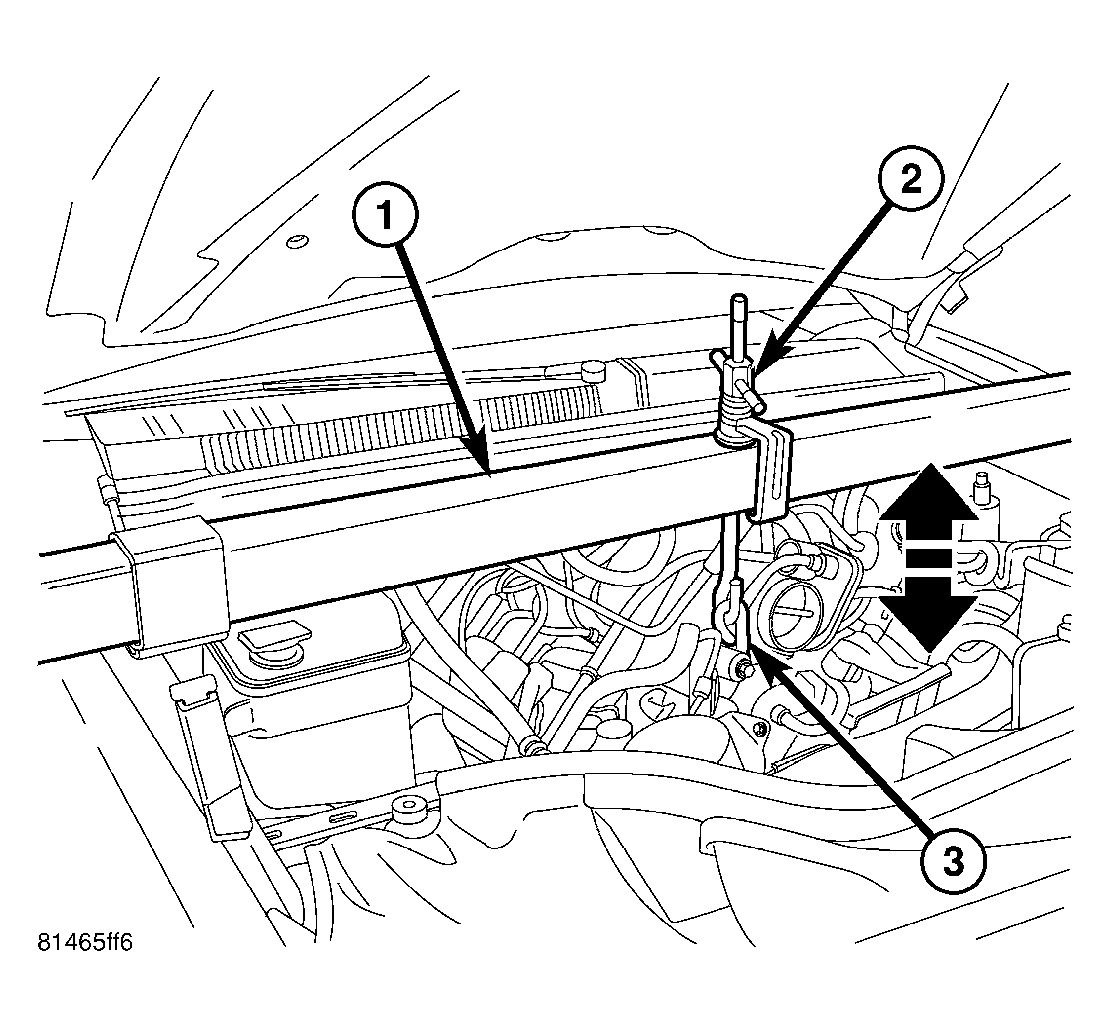

    Fig 5: Engine Support Tool

    Courtesy of CHRYSLER LLC
15. Support engine using engine support fixture (1), special tool # 8534.

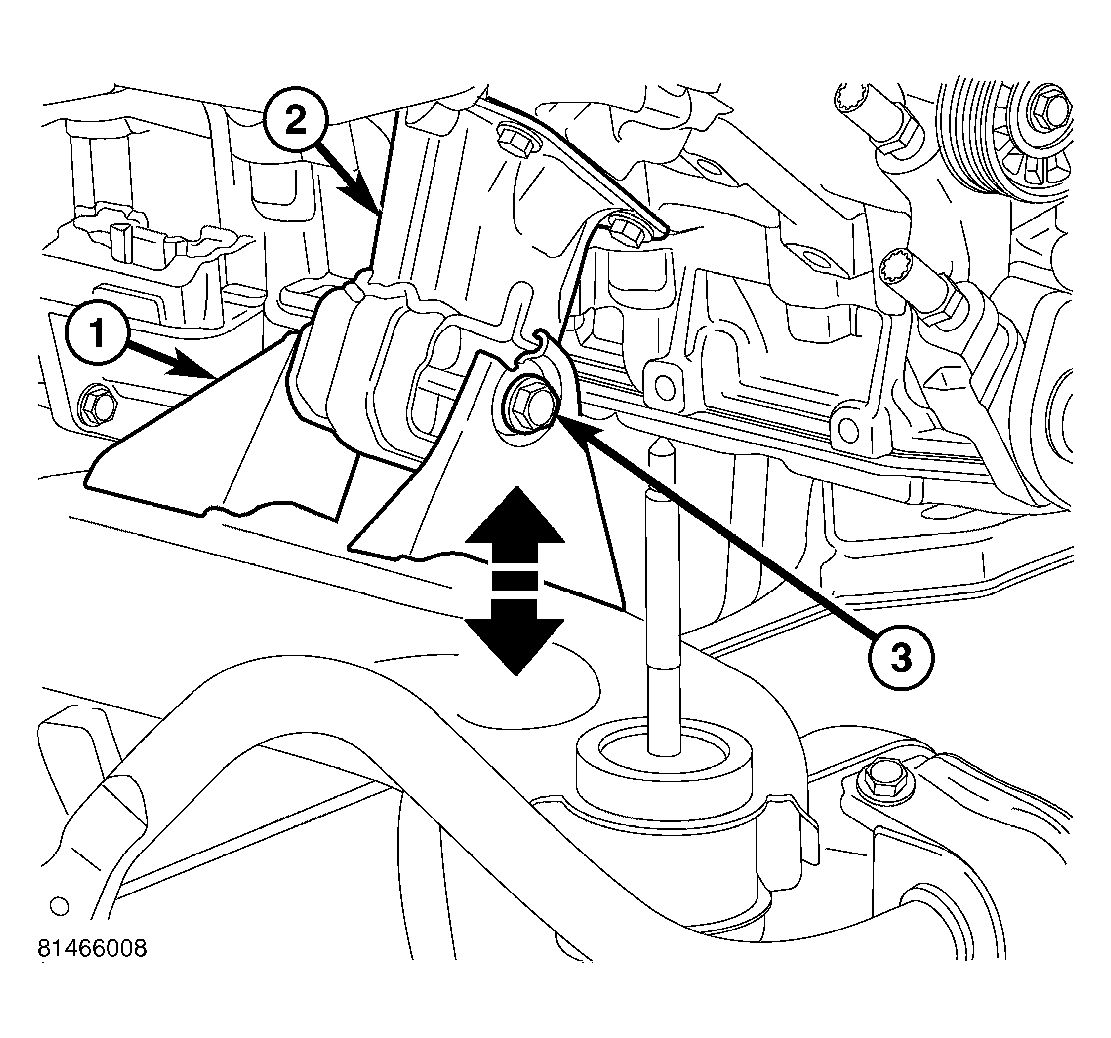

    Fig 6: Engine Mount Bolt

    Courtesy of CHRYSLER LLC
16. Remove the right side engine mount to frame bolt (3).
17. With the bolt removed, lower engine until engine mount rests in frame mount.
    Fig 7: 3.7L Intake Torque Sequence

    Courtesy of CHRYSLER LLC
18. Remove intake manifold retaining fasteners in reverse order of tightening sequence.
19. Remove intake manifold.
