Left Side Repeater Lamp (Export) Connector End View
Left Side Repeater Lamp (Export) Connector End View

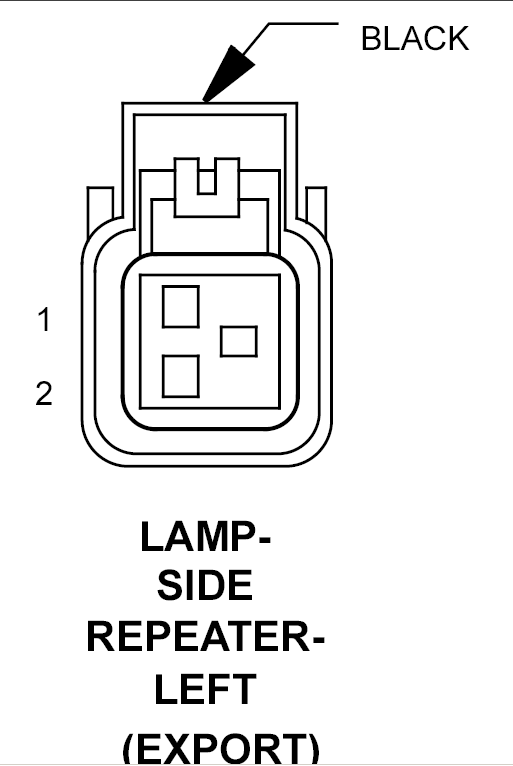

LAMP-SIDE REPEATER-LEFT - BLACK 2-WAY(EXPORT)
Courtesy of CHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
L61 20WT/LG
LEFT TURN SIGNAL
2
Z910 18BK
GROUND
