Left Side Curtain Airbag Connector End View
Left Side Curtain Airbag Connector End View

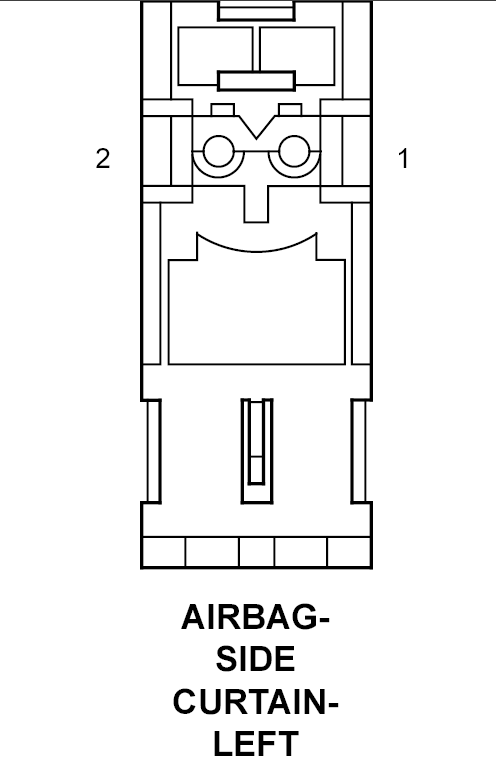

AIRBAG-SIDE CURTAIN-LEFT - 2-WAY
Courtesy of CHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
R3 20LB/OR
LEFT CURTAIN SQUIB 1 LINE 1
2
R1 20LB/WT
LEFT CURTAIN SQUIB 1 LINE 2
