Left Rear Fog Lamp (Export) Connector End View
Left Rear Fog Lamp (Export) Connector End View

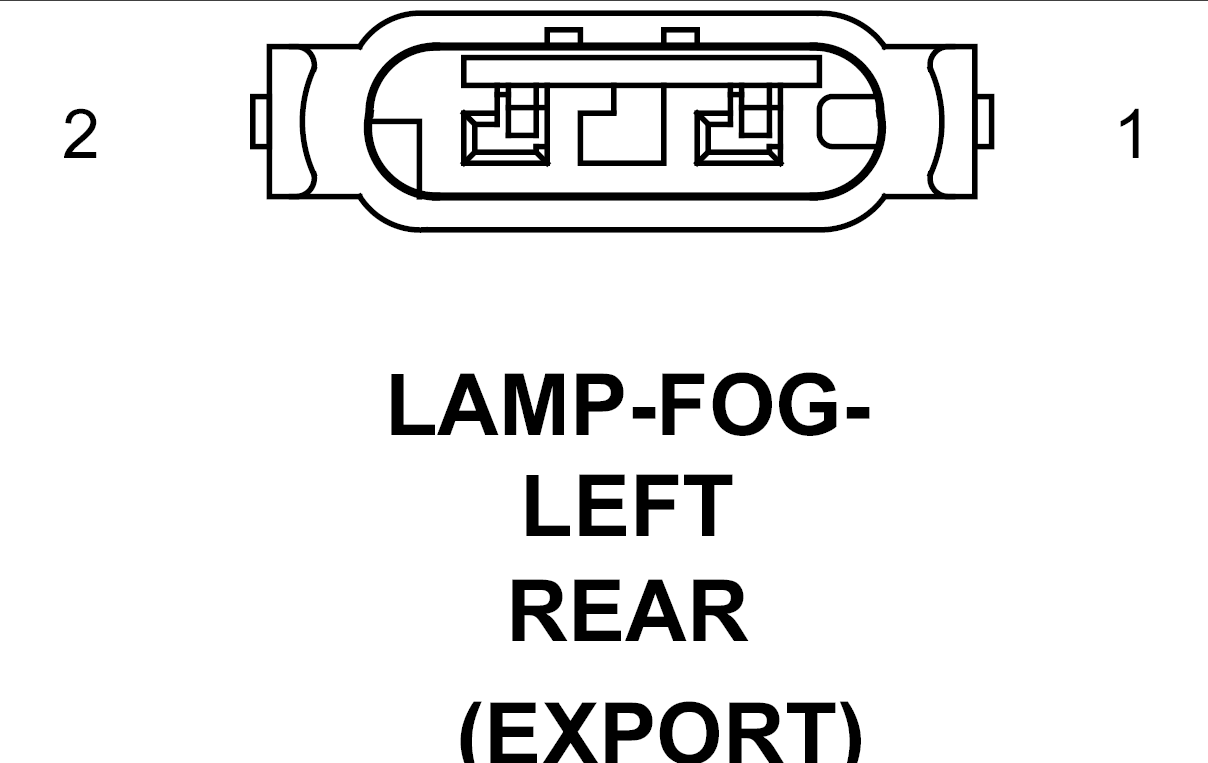

LAMP-FOG-LEFT REAR - 2-WAY(EXPORT)
Courtesy of CHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
Z918 18BK
GROUND
2
A35 18RD/DG
REAR FOG LAMP RELAY OUTPUT
