Left Cushion Pad Heater Connector End View

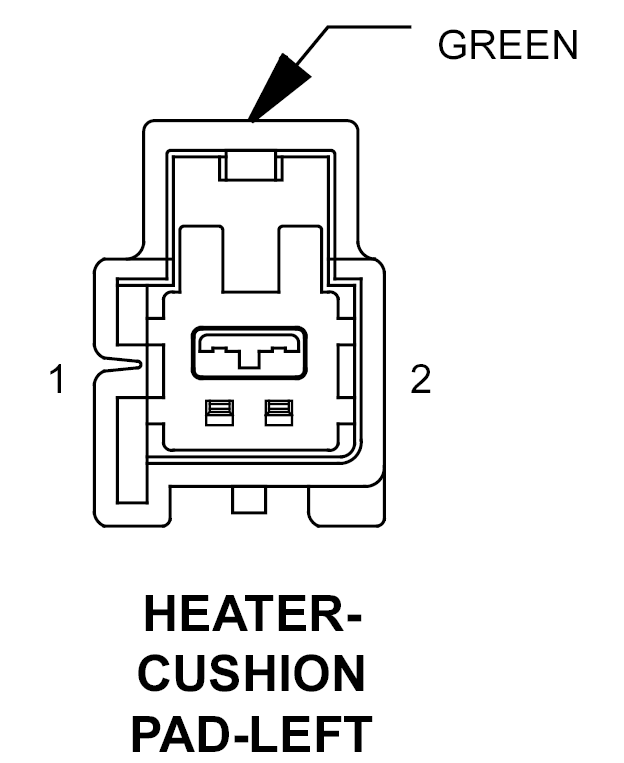

HEATER-CUSHION PAD-LEFT - GREEN 2-WAY

GXK780146Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 P187 16LG/BR LEFT SEAT HEATER B(+) DRIVER
2 Z911 16BK GROUND
