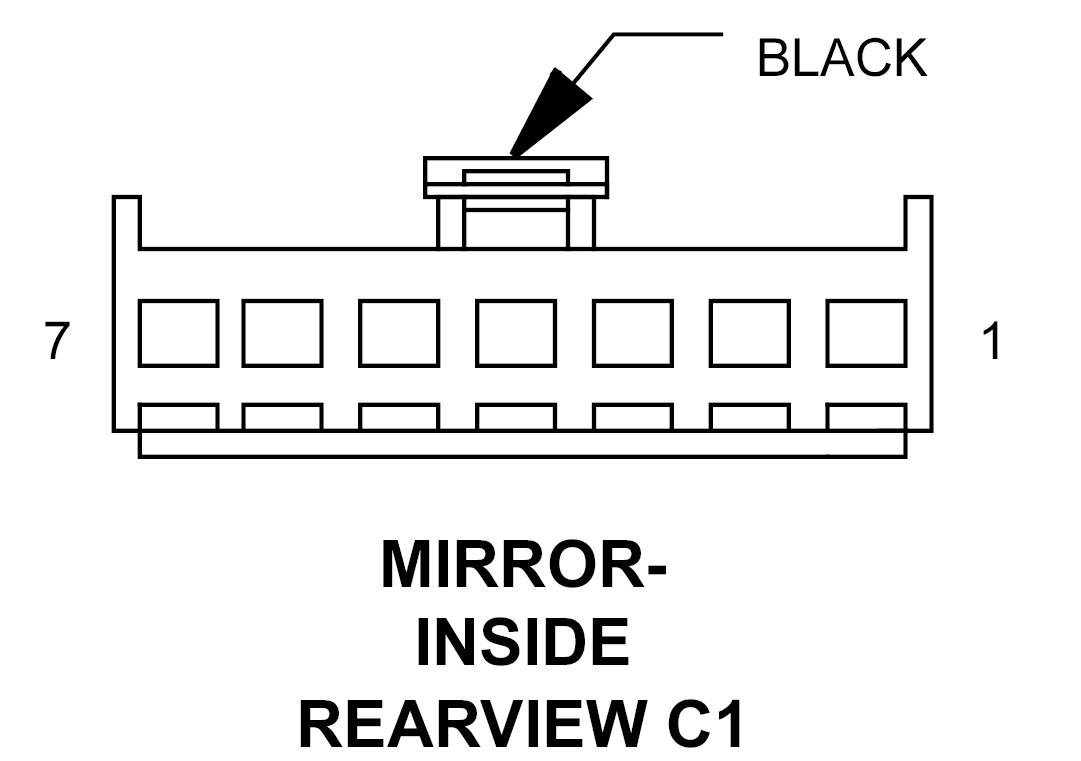

Inside Rearview Mirror Connector End View (C1)
MIRROR-INSIDE REARVIEW C1 - BLACK 7-WAY
| CAV | CIRCUIT | FUNCTION |
| 1 | F921 20PK/YL | FUSED RUN RELAY OUTPUT |
| 2 | Z915 20BK/YL | GROUND |
| 3 | L1 18BR/LB | BACKUP LAMP FEED |
| 4 | P112 20TN/OR | AUTO DAY/NIGHT MIRROR (+) |
| 5 | P114 20TN/WT | AUTO DAY/NIGHT MIRROR (-) |
| 6 | D55 20BR/DB | CAN B BUS (+) (SMART BEAM) |
| 7 | D54 20BR | CAN B BUS (-) (SMART BEAM) |
