Inline Connector End View (C315 )

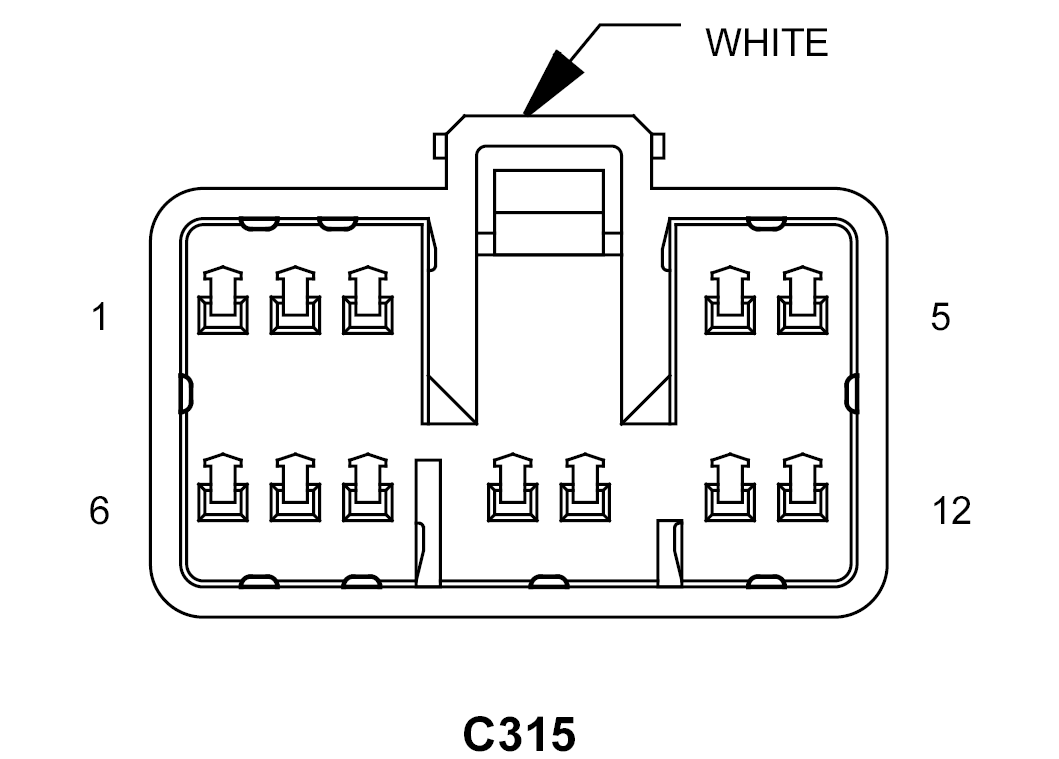

C315 - WHITE 12-WAYFEMALE
| CAV | CIRCUIT | FUNCTION |
| 1 | P72 20TN/GY | PASSENGER MIRROR VERTICAL DRIVER (EXCEPT MEMORY) |
| 2 | P76 20TN/LB | MIRROR COMMON DRIVER (EXCEPT MEMORY) |
| 3 | P74 20TN/OR | PASSENGER MIRROR HORIZONTAL DRIVER (EXCEPT MEMORY) |
| 4 | P112 20TN/OR | AUTO DAY/NIGHT MIRROR (+) (MEMORY) |
| 5 | P114 20TN/WT | AUTO DAY/NIGHT MIRROR (-) (MEMORY) |
| 6 | P110 20LB/WT | FOLDING MIRROR RETURN (FOLDING MIRRORS) |
| 7 | P699 20LG/YL | FOLDING MIRROR CONTROL (FOLDING MIRRORS) |
| 8 | Q303 20WT/OR | DRIVER WINDOW HALL SENSOR B SIGNAL |
| 9 | Q411 16OR/WT | MASTER WINDOW SWITCH LEFT REAR (UP) |
| 10 | Q612 16OR/DB | MASTER WINDOW SWITCH RIGHT REAR (DOWN) |
| 11 | C17 20LB/WT | FUSED REAR WINDOW DEFOGGER RELAY OUTPUT (EXCEPT MEMORY) |
| 12 | Q301 20OR/WT | DRIVER WINDOW HALL SENSOR A SIGNAL |

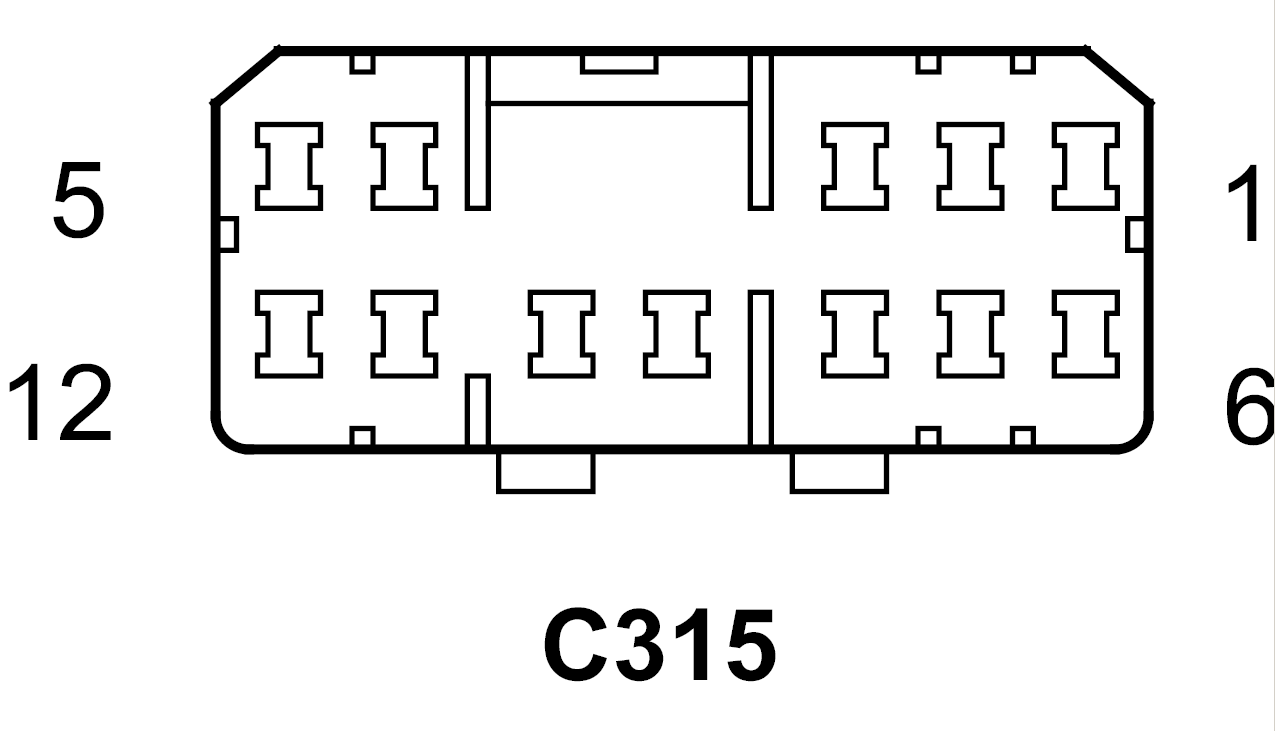

C315 - 12-WAYMALE
| CAV | CIRCUIT | FUNCTION |
| 1 | P72 20TN/GY | PASSENGER MIRROR VERTICAL DRIVER (EXCEPT MEMORY) |
| 2 | P76 20TN/LB | MIRROR COMMON DRIVER (EXCEPT MEMORY) |
| 3 | P74 20TN/OR | PASSENGER MIRROR HORIZONTAL DRIVER (EXCEPT MEMORY) |
| 4 | P112 20TN/OR | AUTO DAY/NIGHT MIRROR (+) (MEMORY) |
| 5 | P114 20TN/WT | AUTO DAY/NIGHT MIRROR (-) (MEMORY) |
| 6 | - | - |
| 7 | - | - |
| 8 | Q303 20WT/OR | DRIVER WINDOW HALL SENSOR B SIGNAL |
| 9 | Q411 16OR/WT | MASTER WINDOW SWITCH LEFT REAR (UP) |
| 10 | Q612 16OR/DB | MASTER WINDOW SWITCH RIGHT REAR (DOWN) |
| 11 | C17 20LB/WT | FUSED REAR WINDOW DEFOGGER RELAY OUTPUT (EXCEPT MEMORY) |
| 12 | Q301 20OR/WT | DRIVER WINDOW HALL SENSOR A SIGNAL |
