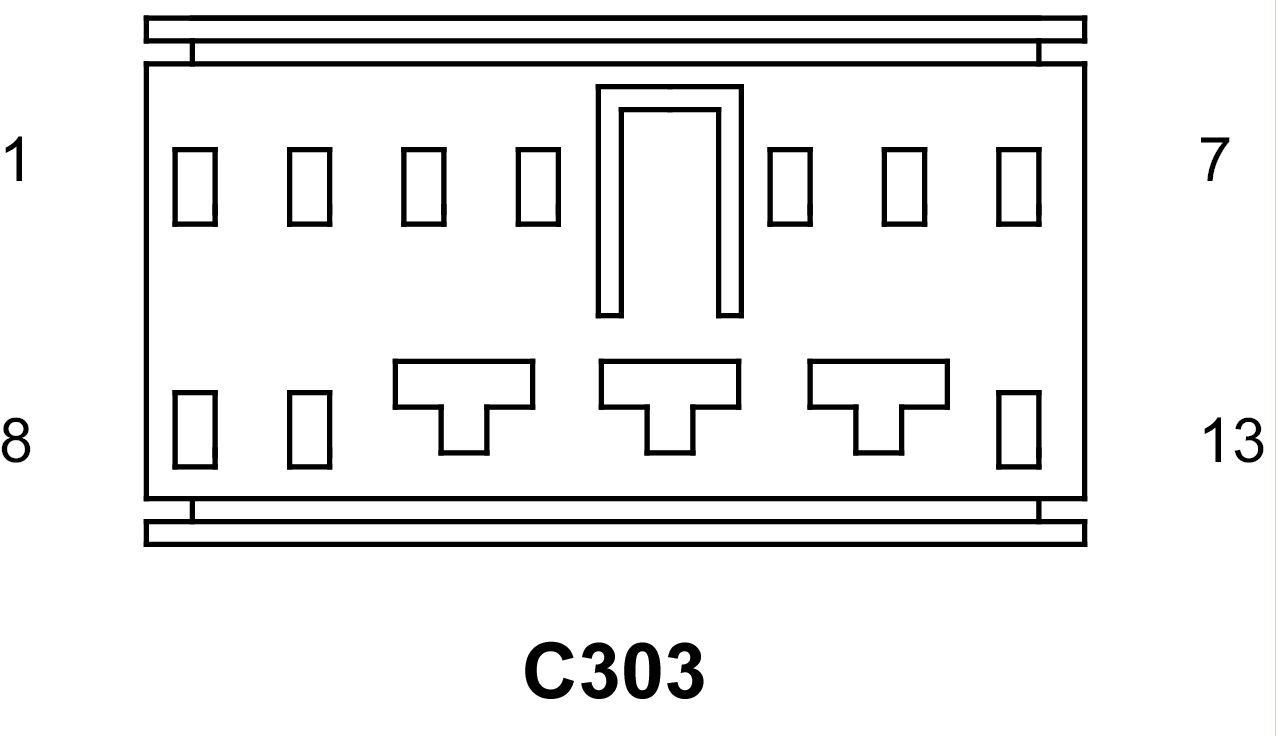

Inline Connector End View (C303 )

C303 - 13-WAYFEMALE

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	P74 20TN/OR	PASSENGER MIRROR HORIZONTAL DRIVER (EXCEPT MEMORY)
2	-	-
3	X299 18GY/YL	LEFT I/P SPEAKER (-) (BASE AUDIO LHD)
3	X298 18GY/LG	RIGHT I/P SPEAKER (-) (BASE AUDIO RHD)
3	X291 18GY/YL	LEFT I/P SPEAKER (-) (PREMIUM AUDIO LHD)
3	X292 18DG/YL	RIGHT I/P SPEAKER (-) (PREMIUM AUDIO RHD)
4	X209 18GY/OR	LEFT I/P SPEAKER (+) (BASE AUDIO LHD)
4	X208 18GY/DG	RIGHT I/P SPEAKER (+) (BASE AUDIO RHD)
4	X201 18GY/VT	LEFT I/P SPEAKER (+) (PREMIUM AUDIO LHD)
4	X202 18DG/VT	RIGHT I/P SPEAKER (+) (PREMIUM AUDIO RHD)
5	P778 16LG/LB	DOOR LOCK RELAY OUTPUT
6	-	-
7	P76 20TN/LB	MIRROR COMMON DRIVER (EXCEPT MEMORY)
8	-	-
9	A929 16RD	FUSED RUN/ACCESSORY DELAY RELAY OUTPUT
10	A929 16RD	FUSED RUN/ACCESSORY DELAY RELAY OUTPUT
11	Z911 14BK	GROUND
12	Q15 14OR/LB	WINDOW LOCK OUT SWITCH OUTPUT
13	Z927 16BK	GROUND

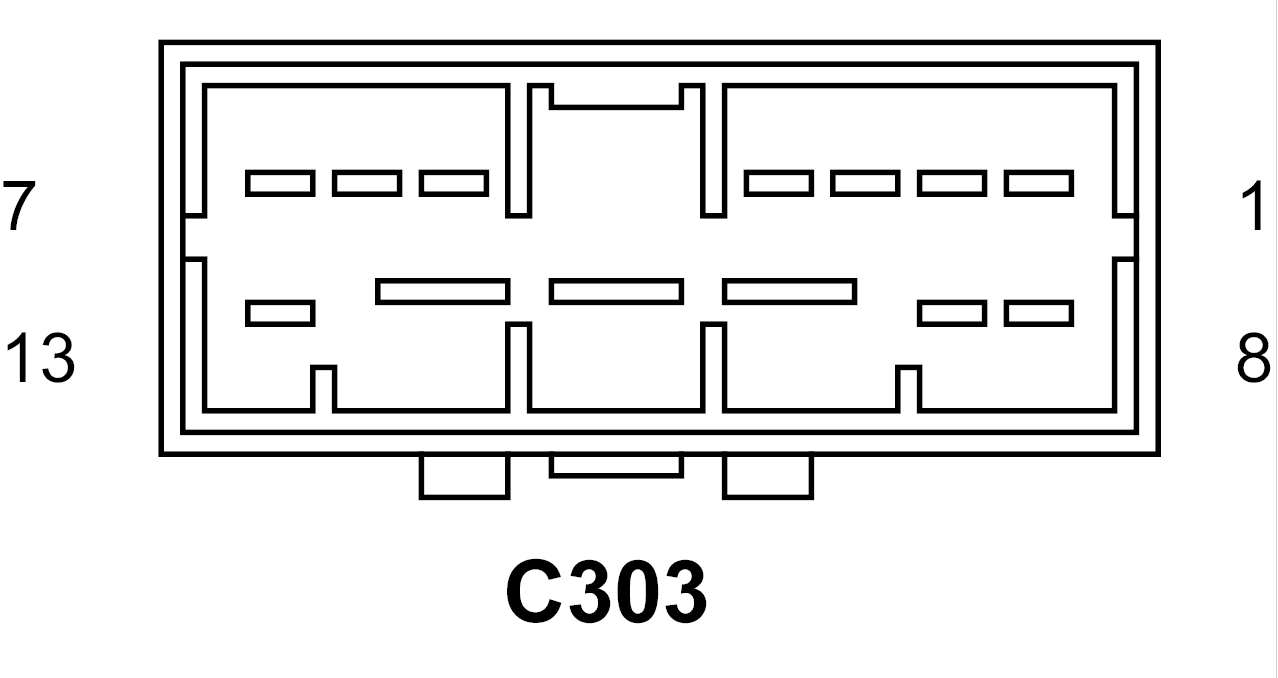

C303 - 13-WAYMALE

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	P74 20TN/OR	PASSENGER MIRROR HORIZONTAL DRIVER (EXCEPT MEMORY)
2	-	-
3	X291 18GY/YL	LEFT I/P SPEAKER (-)
4	X201 18GY/VT	LEFT I/P SPEAKER (+)
5	P778 16LG/LB	DOOR LOCK RELAY OUTPUT
6	-	-
7	P76 20TN/LB	MIRROR COMMON DRIVER (EXCEPT MEMORY)
8	-	-
9	A929 16RD/DB	FUSED RUN/ACCESSORY DELAY RELAY OUTPUT
10	A929 16RD/LG	FUSED RUN/ACCESSORY DELAY RELAY OUTPUT
11	Z911 16BK	GROUND
12	Q15 16OR/LB	WINDOW LOCK OUT SWITCH OUTPUT
13	Z927 16BK	GROUND
