Inline Connector End View (C102 )

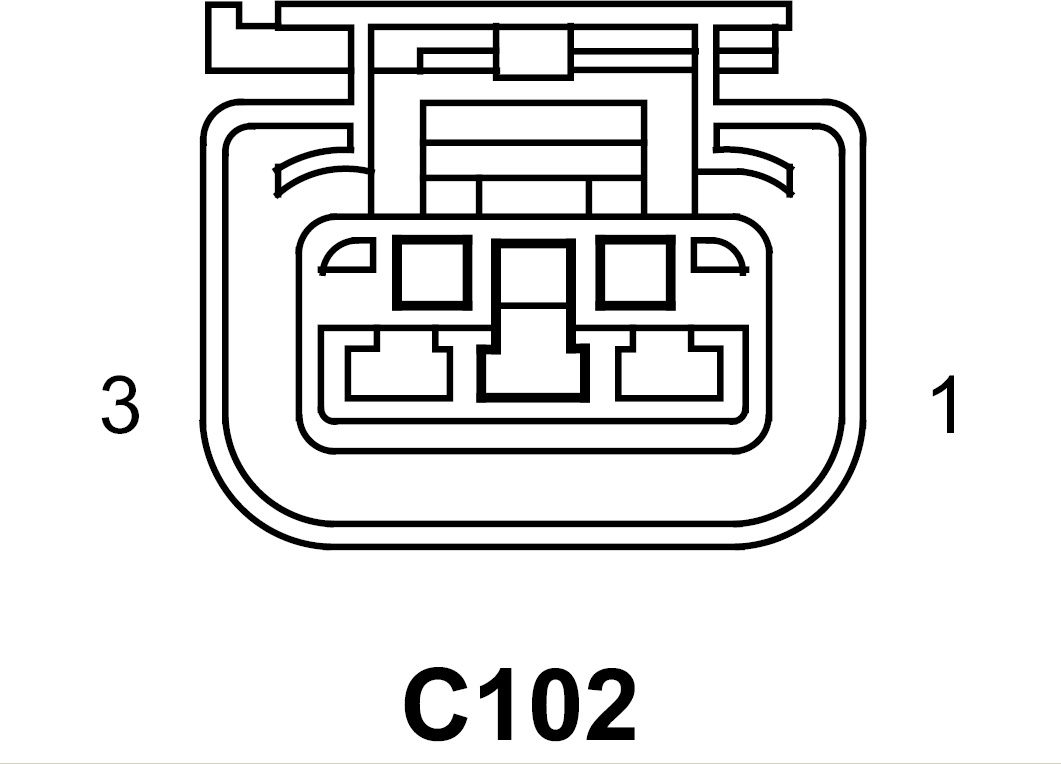

C102 - BLACK 3-WAYFEMALE

GXK780024Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 A803 16LB GEN SENSE (GAS)
2 K125 16BR/DG GEN FIELD CONTROL (GAS)
3 T750 12YL/GY ENGINE STARTER MOTOR RELAY OUTPUT

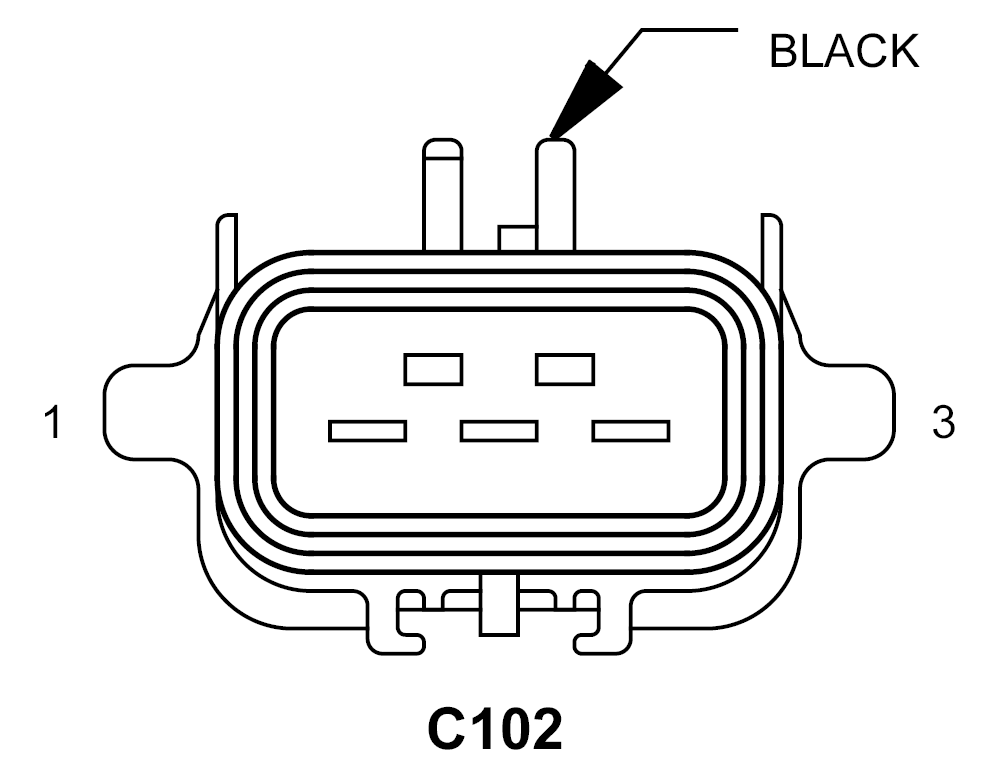

C102 - BLACK 3-WAYMALE

GXK780023Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 A803 16LB GEN SENSE
2 K125 16BR/DG GEN FIELD CONTROL
3 T750 12YL/GY ENGINE STARTER MOTOR RELAY OUTPUT
