Overlap Regulating Valve

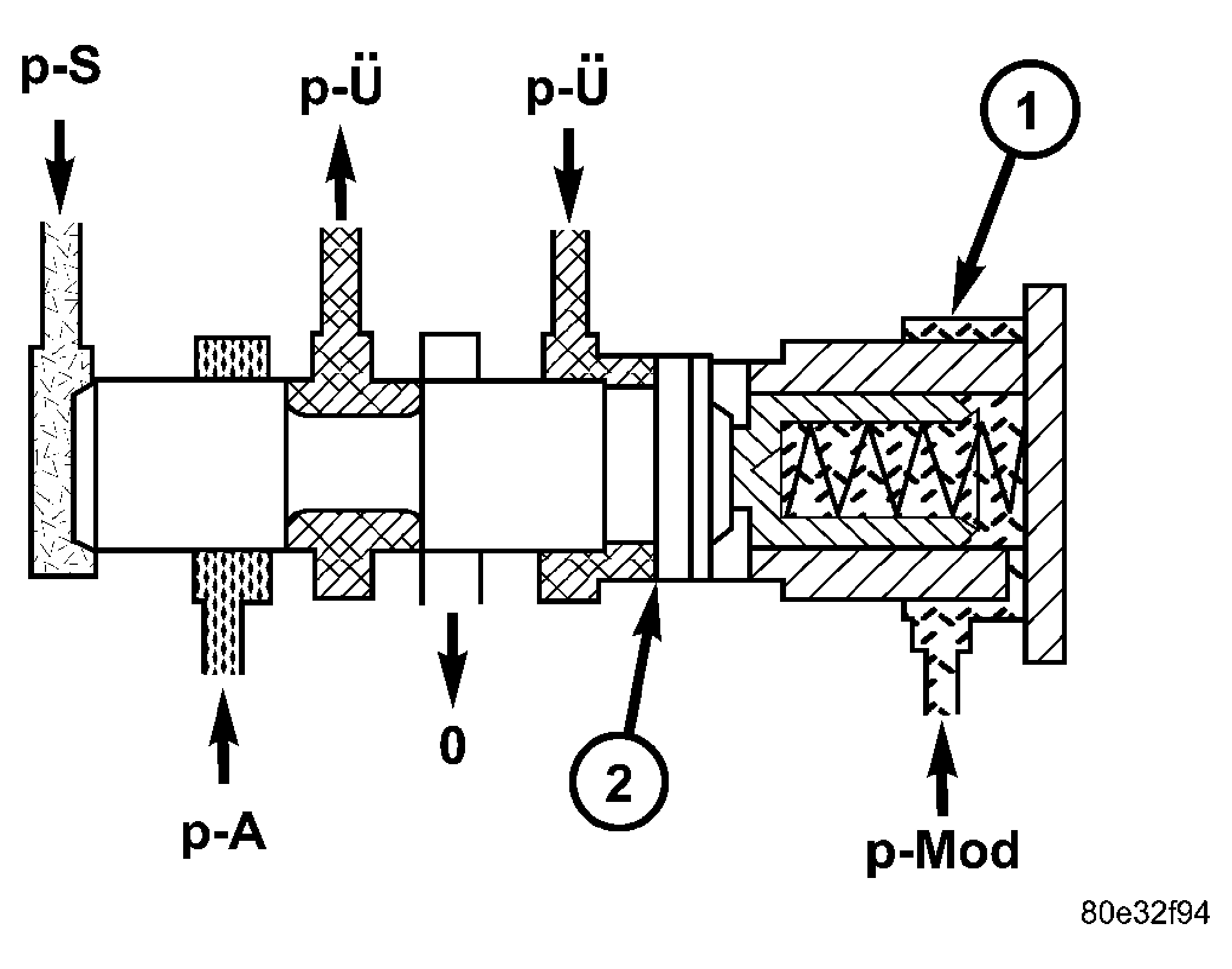

Fig 1: Cutaway View Of Overlap Regulating Valve

Courtesy of CHRYSLER LLC

During the shift phase the pressure in the deactivating shift actuator is regulated in relation to the engine load (modulating pressure, p-Mod) and the pressure in the activating actuator. The regulated pressure is inversely proportional to the transfer capacity of the activating shift actuator (regulated overlap). See Fig 1.
