Third Gear POWERFLOW: Notes

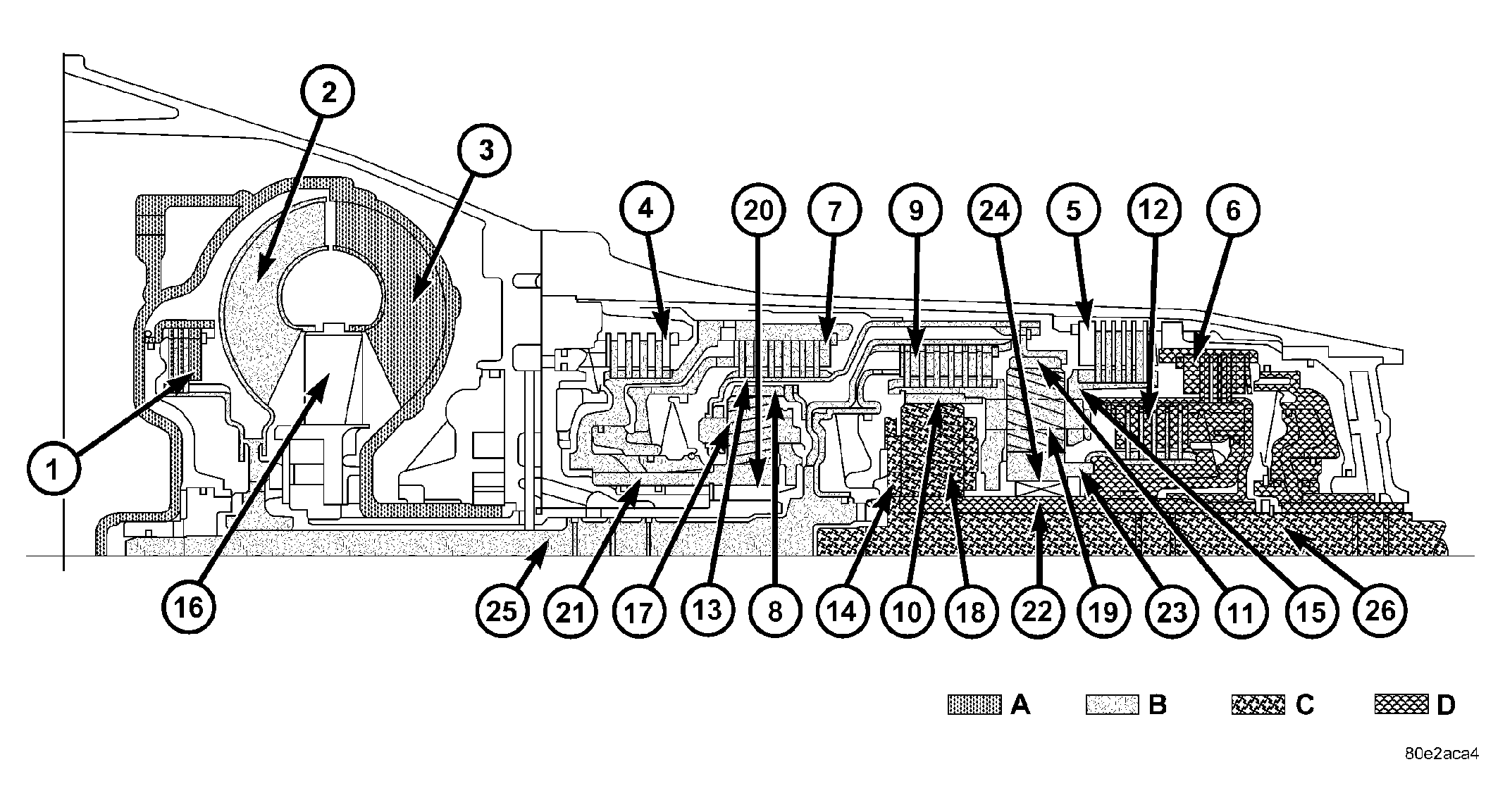

Fig 1: Identifying Third Gear Powerflow (1 Of 2)

Courtesy of CHRYSLER LLC

1 - TORQUE CONVERTER LOCK-UP CLUTCH	14 - CENTER PLANETARY CARRIER
2 - TORQUE CONVERTER TURBINE	15 - REAR PLANETARY CARRIER
3 - TORQUE CONVERTER IMPELLER	16 - TORQUE CONVERTER STATOR
4 - HOLDING CLUTCH B1	17 - FRONT PLANETARY PINION GEARS
5 - HOLDING CLUTCH B3	18 - CENTER PLANETARY PINION GEARS
6 - HOLDING CLUTCH B2	19 - REAR PLANETARY PINION GEARS
7 - DRIVING CLUTCH K1	20 - FREEWHEELING CLUTCH F1
8 - FRONT PLANETARY ANNULUS GEAR	21 - FRONT PLANETARY SUN GEAR
9 - DRIVING CLUTCH K2	22 - CENTER PLANETARY SUN GEAR
10 - CENTER PLANETARY ANNULUS GEAR	23 - REAR PLANETARY SUN GEAR
11 - REAR PLANETARY ANNULUS GEAR	24 - FREEWHEELING CLUTCH F2
12 - DRIVING CLUTCH K3	25 - INPUT SHAFT
13 - FRONT PLANETARY CARRIER	26 - OUTPUT SHAFT
A - ENGINE SPEED	C - FIRST GEAR RATIO
B - TRANSMISSION INPUT SPEED	D - FIXED PARTS

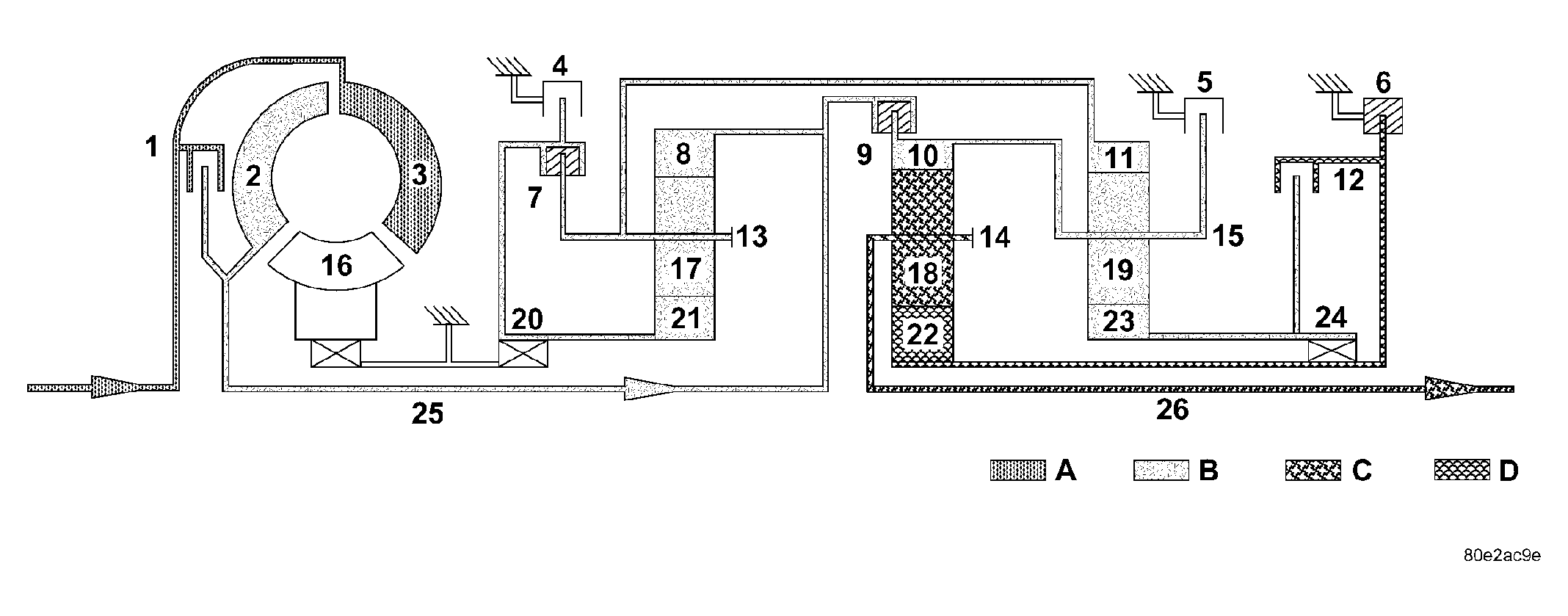

Fig 2: Identifying Third Gear Powerflow (2 Of 2)

Courtesy of CHRYSLER LLC

1 - TORQUE CONVERTER LOCK-UP CLUTCH	14 - CENTER PLANETARY CARRIER
2 - TORQUE CONVERTER TURBINE	15 - REAR PLANETARY CARRIER
3 - TORQUE CONVERTER IMPELLER	16 - TORQUE CONVERTER STATOR
4 - HOLDING CLUTCH B1	17 - FRONT PLANETARY PINION GEARS
5 - HOLDING CLUTCH B3	18 - CENTER PLANETARY PINION GEARS
6 - HOLDING CLUTCH B2	19 - REAR PLANETARY PINION GEARS
7 - DRIVING CLUTCH K1	20 - FREEWHEELING CLUTCH F1
8 - FRONT PLANETARY ANNULUS GEAR	21 - FRONT PLANETARY SUN GEAR
9 - DRIVING CLUTCH K2	22 - CENTER PLANETARY SUN GEAR
10 - CENTER PLANETARY ANNULUS GEAR	23 - REAR PLANETARY SUN GEAR
11 - REAR PLANETARY ANNULUS GEAR	24 - FREEWHEELING CLUTCH F2
12 - DRIVING CLUTCH K3	25 - INPUT SHAFT
13 - FRONT PLANETARY CARRIER	26 - OUTPUT SHAFT
A - ENGINE SPEED	C - FIRST GEAR RATIO
B - TRANSMISSION INPUT SPEED	D - FIXED PARTS

Torque from the torque converter is increased via the input shaft (25) and the center planetary gearset and transferred to the output shaft (26). See Fig 1 and Fig 2.
