Activation Sequence

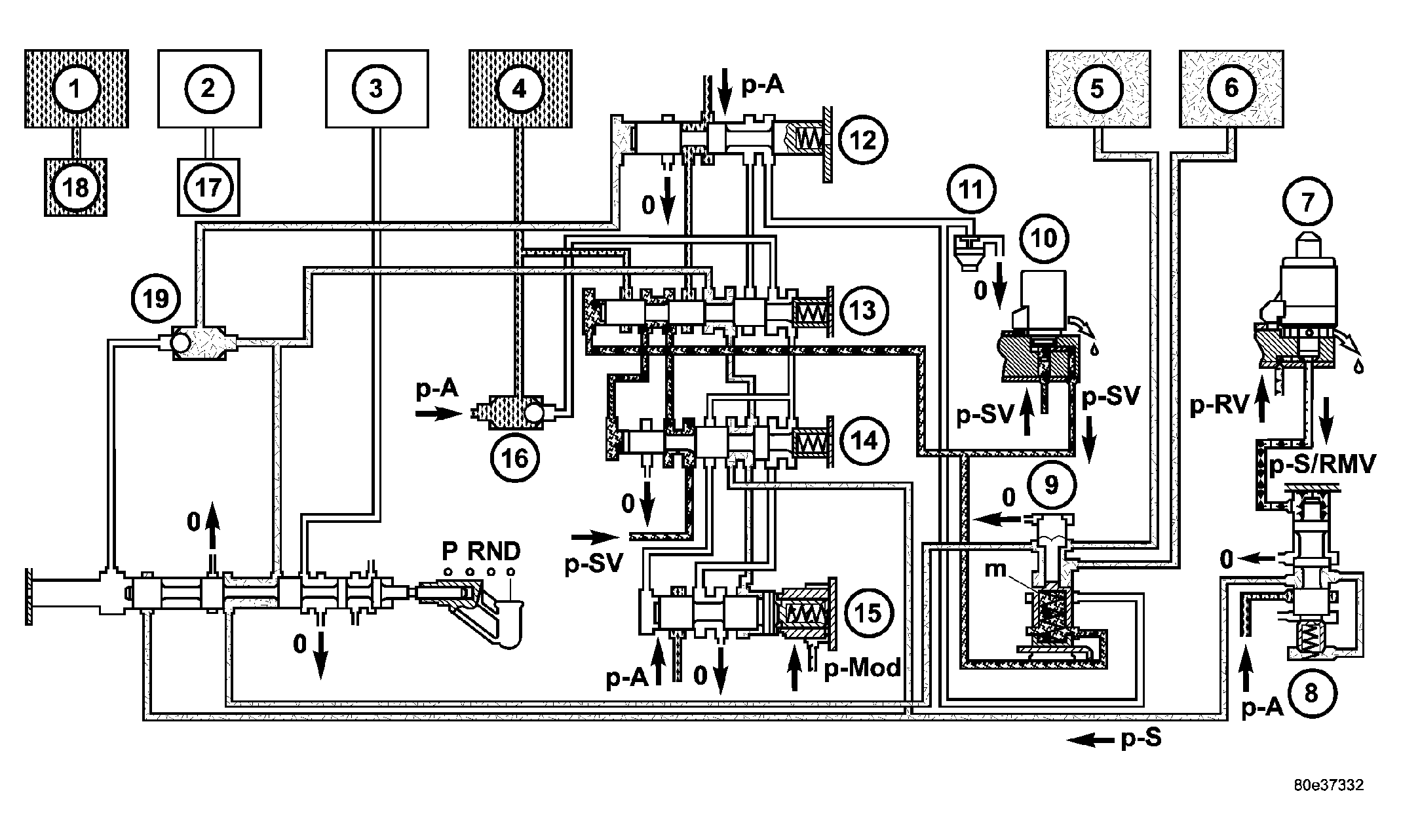

Fig 1: Identifying Activation Sequence

Courtesy of CHRYSLER LLC

1 - HOLDING CLUTCH B1	11 - PRESSURE HOLDING VALVE
2 - DRIVING CLUTCH K1	12 - 3-4 HOLDING PRESSURE SHIFT VALVE
3 - HOLDING CLUTCH B3	13 - 3-4 COMMAND VALVE
4 - DRIVING CLUTCH K3	14 - 3-4 SHIFT PRESSURE SHIFT VALVE
5 - HOLDING CLUTCH B2 PISTON	15 - 3-4 OVERLAP REGULATING VALVE
6 - HOLDING CLUTCH B2 PISTON OPPOSING FACE	16 - BALL VALVE
7 - SHIFT PRESSURE REGULATING SOLENOID	17 - 1-2/4-5 COMMAND VALVE
8 - SHIFT PRESSURE REGULATING VALVE	18 - 1-2/4-5 COMMAND VALVE
9 - SHIFT VALVE B2	19 - BALL VALVE
10 - 3-4 SHIFT SOLENOID

The selector valve opens the shift pressure (p-S) feed connection from the ball valve (19) with the shift valve B2 (9). With the shift valve B2 (9) in the upper position, shift pressure (p-S) travels behind the piston B2 (5) and simultaneously to the opposing face of the piston B2 (6). The multiple-disc holding clutch B2 begins to close. See Fig 1.

The pressure on the opposing face of the piston B2 (6) ensures a soft activation of the multiple-disc holding clutch B2.
