Clevis Bracket Bushing

Fig 1: Identifying Clevis Bracket & Shock

Courtesy of CHRYSLER LLC

Remove the clevis bracket (3) from the shock (1). See REMOVAL .

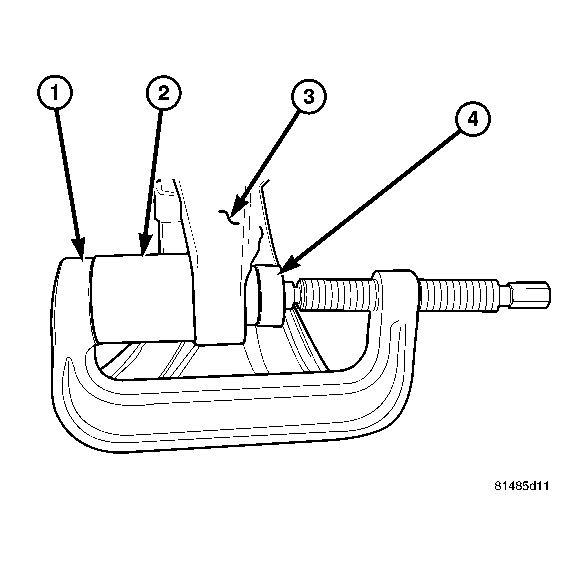

Fig 2: Removing Clevis Bushing

Courtesy of CHRYSLER LLC

1 - C-4212-F PRESS

2 - 9653-2 RECEIVER

3 - LOWER CONTROL ARM

4 - 9653-1 DRIVER

NOTE: On 4X4 vehicles install the C-4212-F between the axle shaft and the lower control in order to allow the tool clearance to press the bushing in and out.

NOTE: Extreme pressure lubrication must be used on the threaded portions of the tool. This will increase the longevity of the tool and insure proper operation during the removal and installation process.

Press the bushing out using special tools C-4212-F (Press) (1), 9653-1 (driver) (4) and 9653-2 (Receiver) (2) from the lower control arm (3).
