Hook-Front Tow

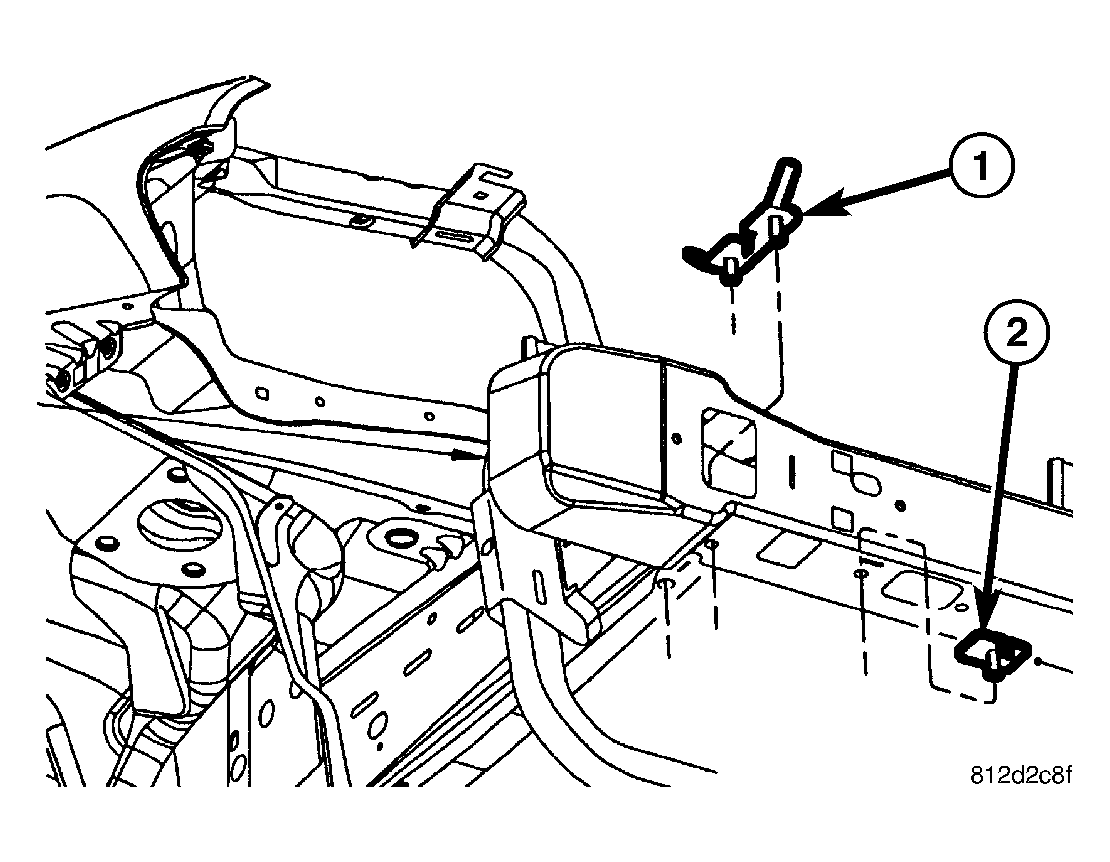

Fig 1: Stud Plates
GC0027817Courtesy of CHRYSLER LLC
  1. Install the stud plates (1 & 2) through the holes in the front bumper beam.

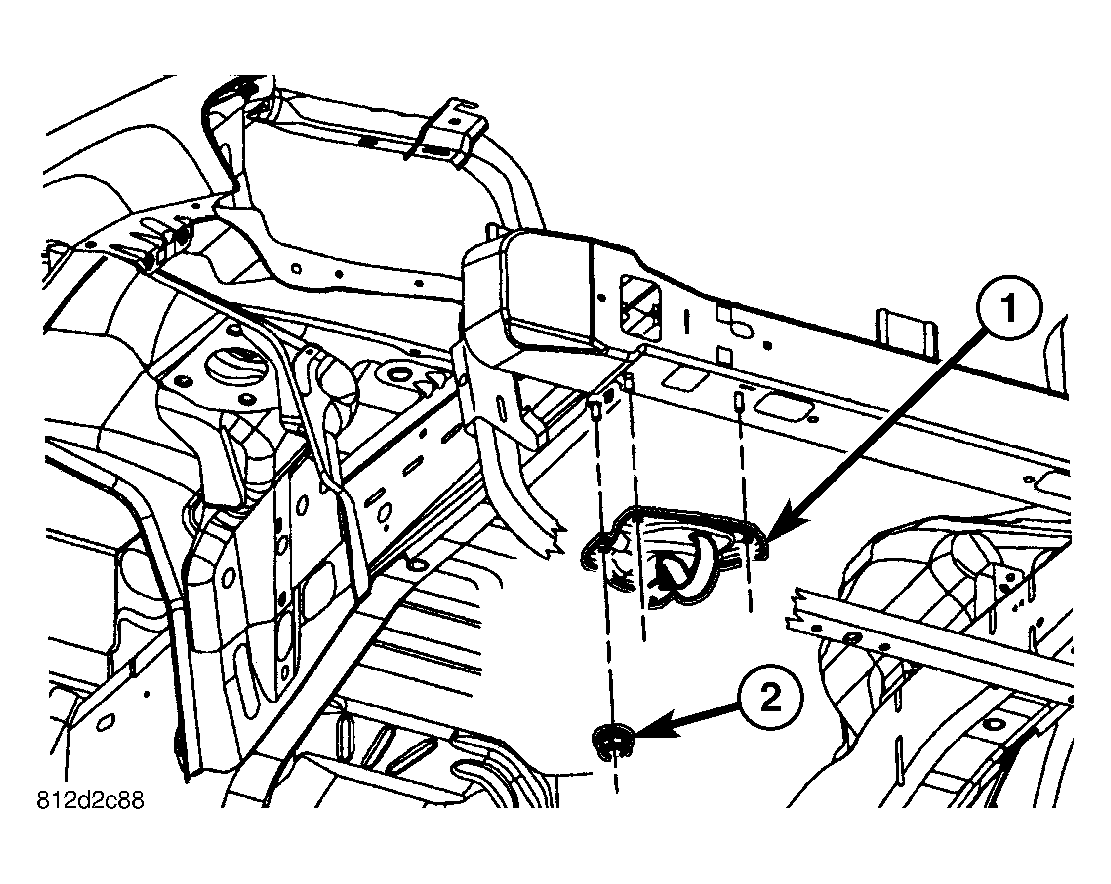

    Fig 2: Front Tow Hook
    GC0027816Courtesy of CHRYSLER LLC
  2. Install the tow hook (1) and install the nuts (2).
  3. Tighten the nuts to 68 N.m (50 ft. lbs.).
  4. Install the front fascia. See INSTALLATION .
