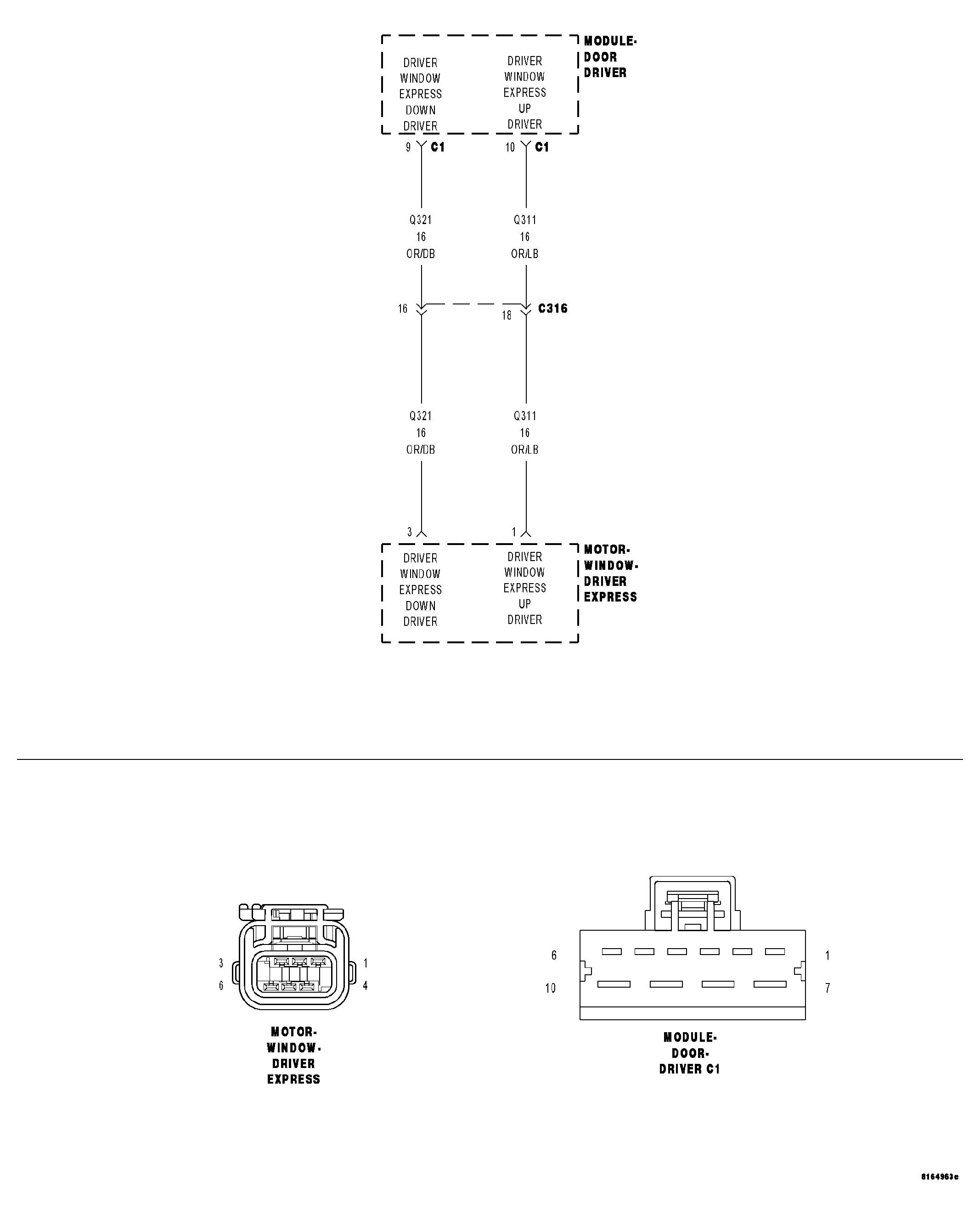

Home >> Jeep >> 2007 >> Commander Base, 3.7 K, AWD >> Repair and Diagnosis (Single Page) >> Body & Frame >> Windows >> Power Windows - Electrical Diagnostics >> Power Windows - Electrical Diagnostics >> DTC Troubleshooting >> B1854-Driver Window Control Circuit Low - DDM >> Circuit Schematic
