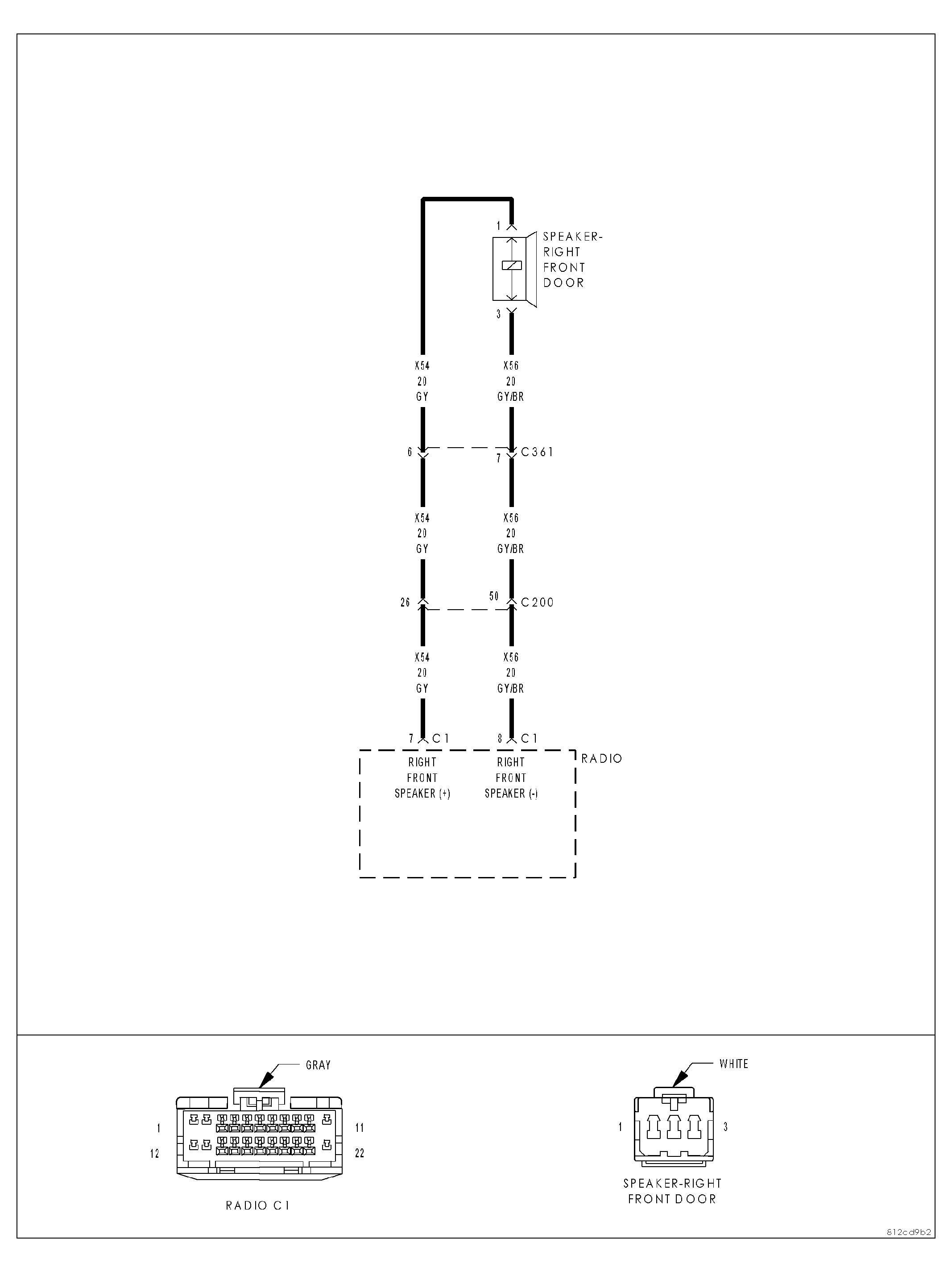

Home >> Jeep >> 2007 >> Commander Base, 3.7 K, AWD >> Repair and Diagnosis (Single Page) >> Accessories & Equipment >> Entertainment Systems >> Audio System & Video System - Electrical Diagnosis >> Audio/Video Systems - Electrical Diagnosis >> Diagnosis And Testing >> B1406-Front Right Audio Speaker Output Circuit High >> Circuit Schematic
