Power Steering System: Pump: Pump: Description

Hydraulic pressure for the power steering system is provided by a belt driven power steering pump. See Fig 1. The pump shaft has a pressed-on high strength plastic drive pulley that is belt driven by the crankshaft pulley. The reservoir is attached to the pump body with spring clips on the 4.0L engine. A remote pump reservoir is used on the 2.4L engine mounted to the fan shroud. The power steering pump is connected to the steering gear by the pressure and return hoses.

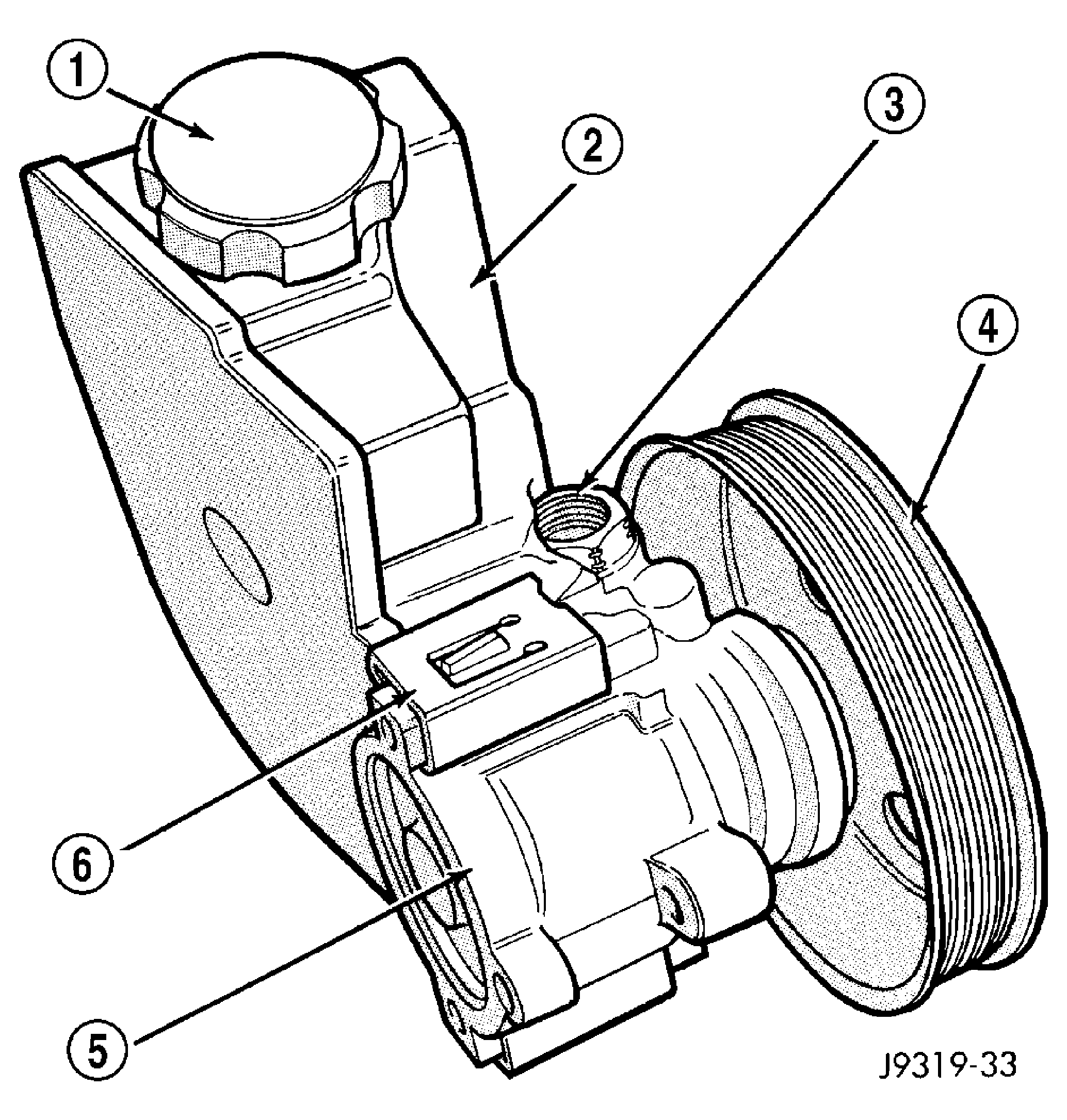

Fig 1: Pump With Integral Reservoir

Courtesy of DAIMLERCHRYSLER CORP.
