Oxygen Sensor (Component Side) - 4 Way

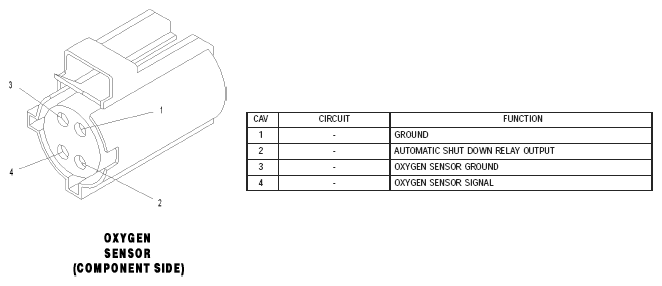

Fig 1: Connector Pinouts - Oxygen Sensor (Component Side)

G04764033

Courtesy of DAIMLERCHRYSLER CORPORATION
