Radiator Fan: Removal: 2.4L

  1. Remove the coolant recovery bottle and position out of the way. See Fig 1.

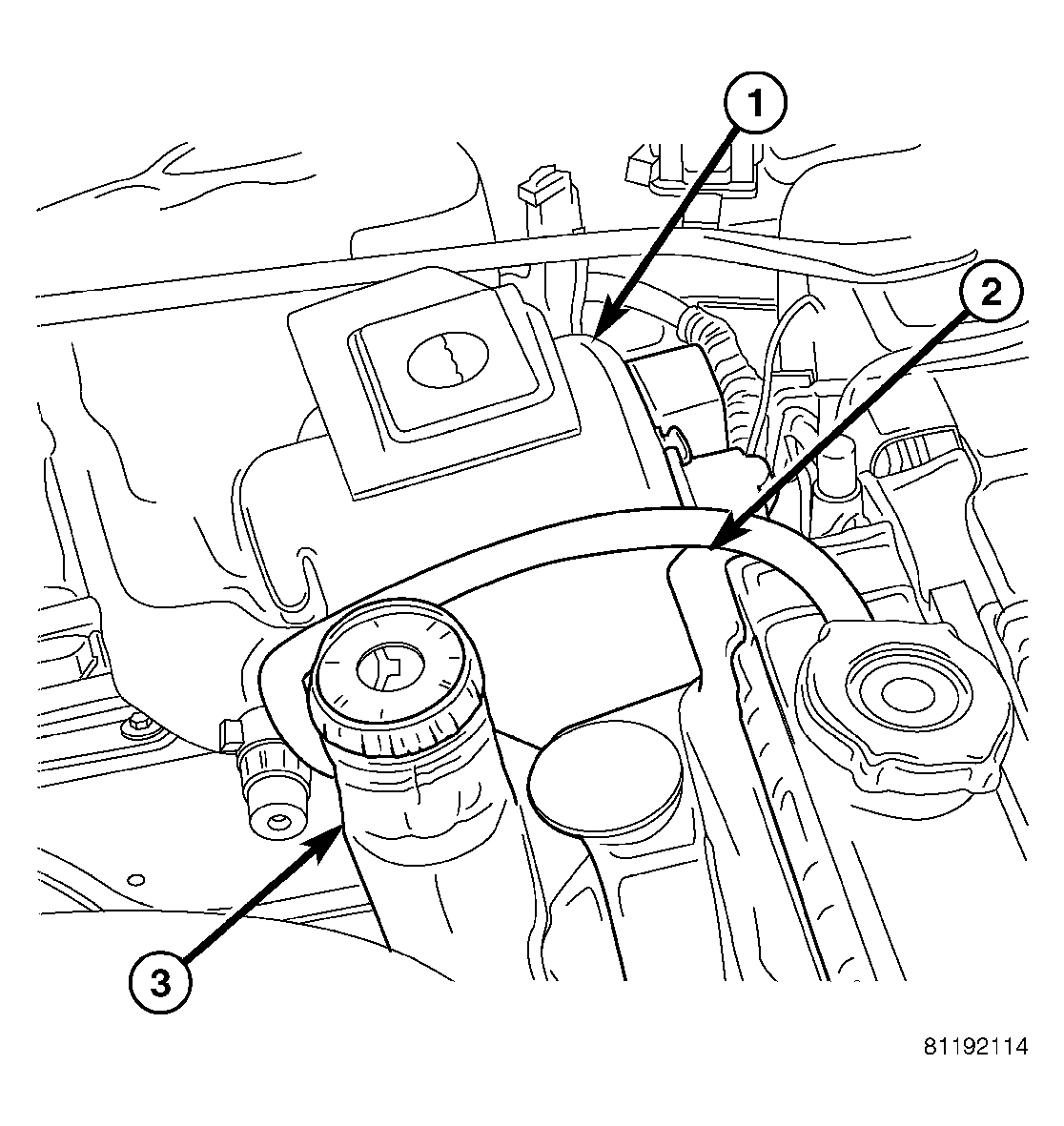

    Fig 1: Coolant Recovery Bottle
    GC0030427Courtesy of DAIMLERCHRYSLER CORP.
    1 - COOLANT RECOVERY BOTTLE
    2 - COOLING FAN ASSEMBLY
    2 - POWER STEERING RESERVOIR
  2. Remove and position the power steering reservoir out of the way.
  3. Disconnect the electrical connector.
  4. Remove the mounting screws.
  5. Remove the cooling fan assembly. See Fig 2.

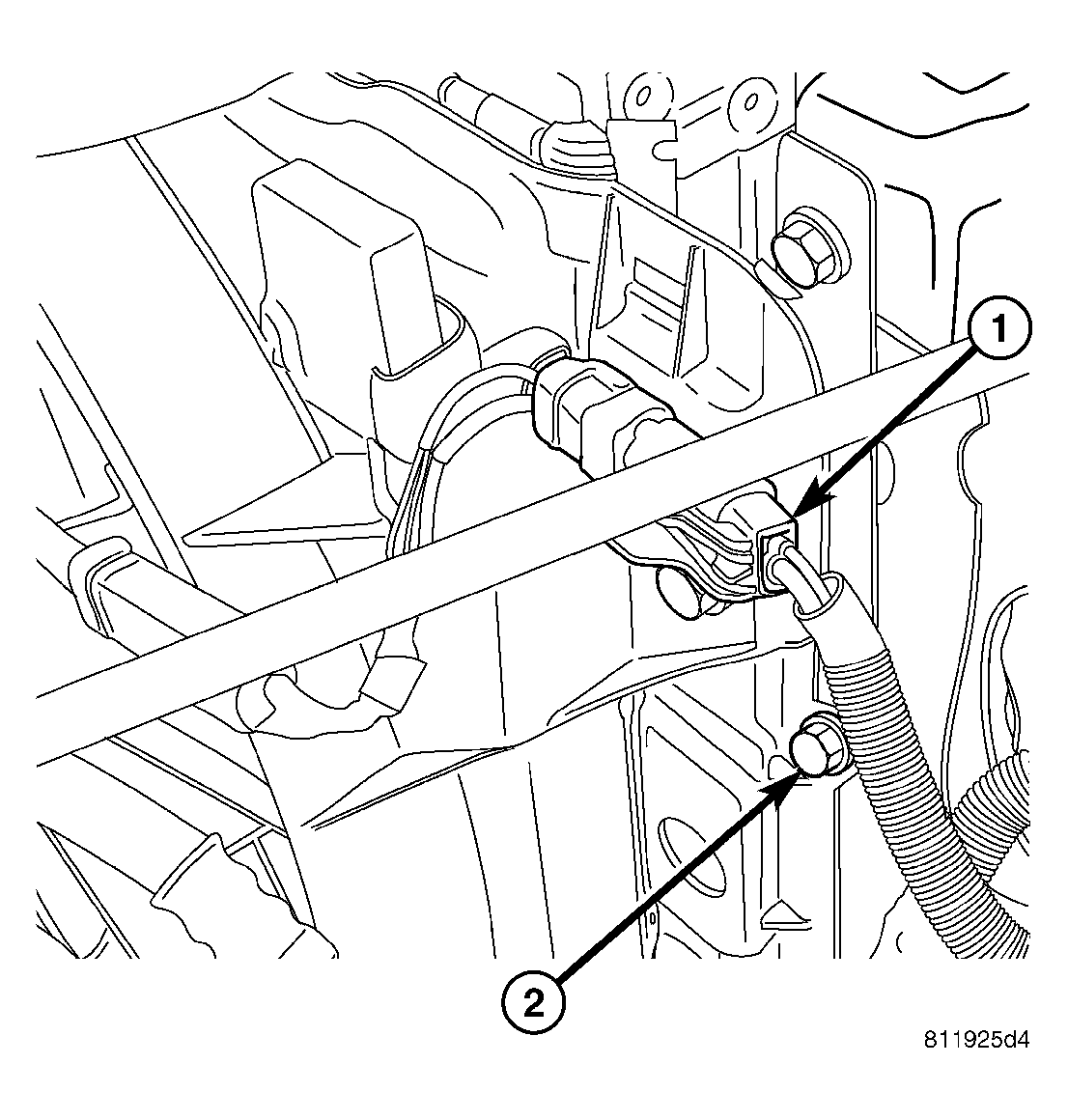

Fig 2: Electrical Connector
GC0030428Courtesy of DAIMLERCHRYSLER CORP.
1 - ELECTRICAL CONNECTOR
2 - MOUNTING SCREW
