Standard Procedure - Towing Recommendations: Notes

DaimlerChrysler Corporation recommends that a 4WD vehicle be transported on a flat-bed device. A Wheel-lift or front end attached Sling-type device can be used provided all the wheels are lifted off the ground using tow dollies. See Fig 1 andFig 2.

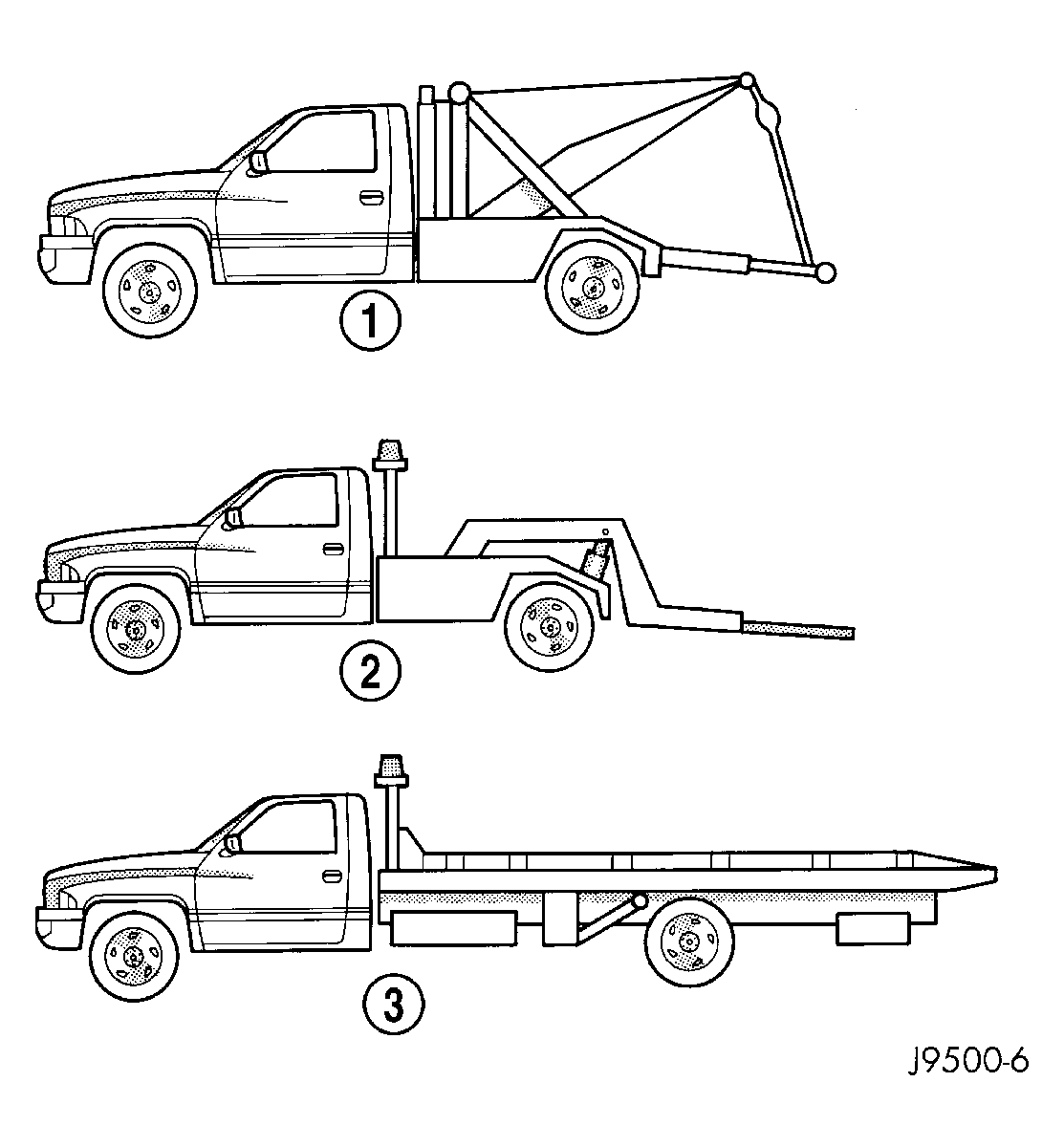

Fig 1: Tow Vehicles With Approved Equipment

Courtesy of DAIMLERCHRYSLER CORP.

1 - SLING TYPE

2 - WHEEL LIFT

3 - FLAT BED

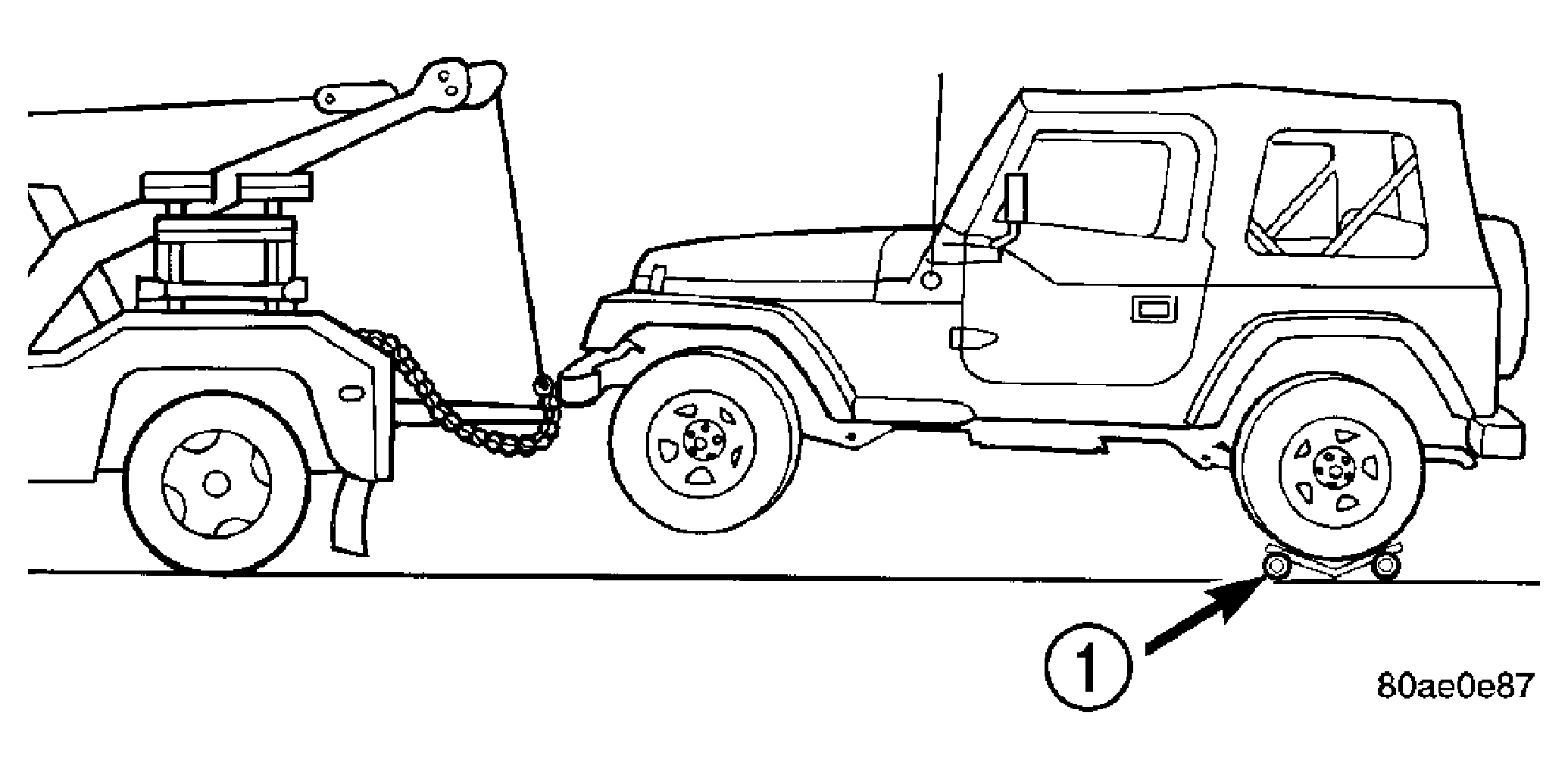

Fig 2: Towing With Tow Dollies

Courtesy of DAIMLERCHRYSLER CORP.

1 - TOW DOLLY
