Powertrain Control Module C3 - Black/Natural 38 Way

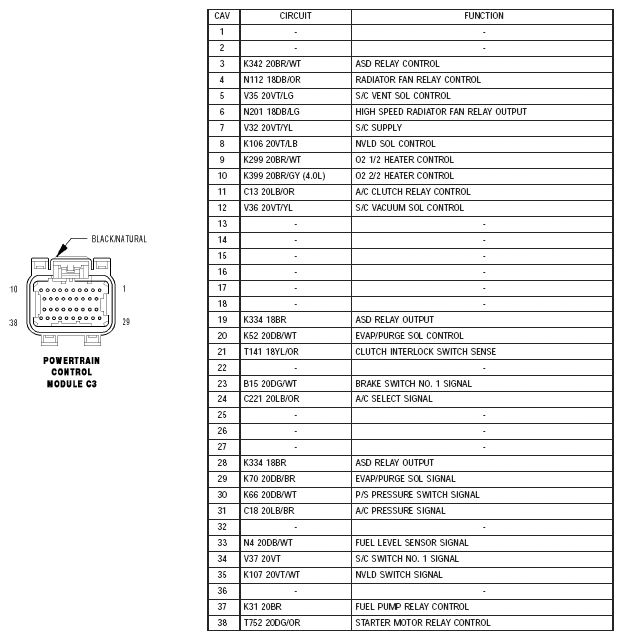

Fig 1: Connector Pinouts - Powertrain Control Module C3 (Black/Natural 38 Way)

G04764044

Courtesy of DAIMLERCHRYSLER CORPORATION
