Home >> Jeep >> 2006 >> Wrangler Rubicon, Standard >> Repair and Diagnosis >> Engine Performance >> System >> Powertrain Diagnostic Procedures >> Connector PINOUTS >> Powertrain Control Module C2 - Black/Orange 38 Way

Powertrain Control Module C2 - Black/Orange 38 Way

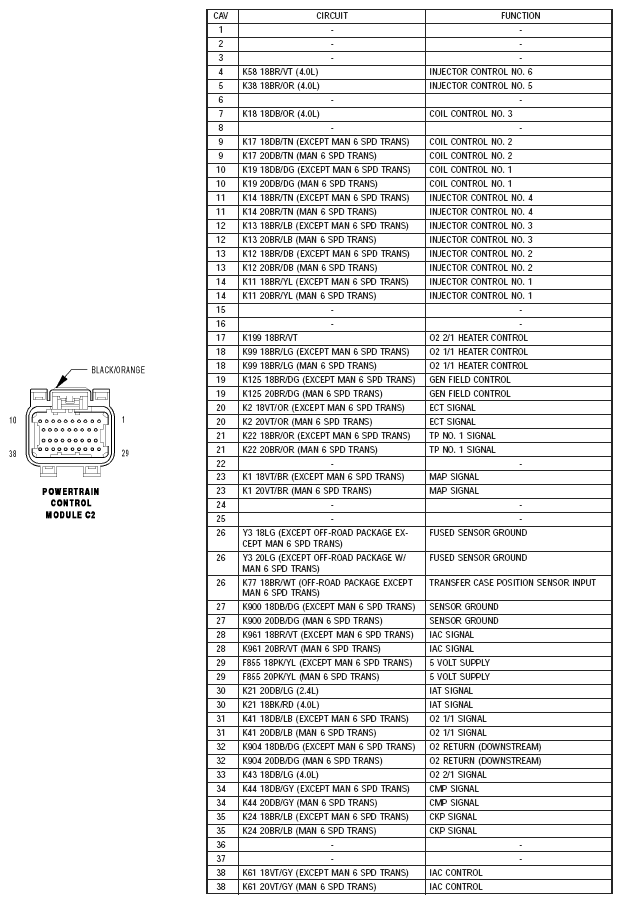

Fig 1: Connector Pinouts - Powertrain Control Module C2 (Black/Orange 38 Way)

G04764043

Courtesy of DAIMLERCHRYSLER CORPORATION
