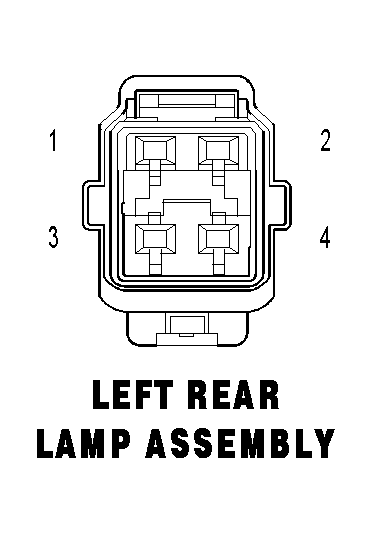

Left Rear Lamp Assembly Connector End View
LEFT REAR LAMP ASSEMBLY - 4 WAY
| CAV | CIRCUIT | FUNCTION |
| 1 | L1 20WT/LG (EXCEPT EXPORT) | BACKUP LAMP FEED |
| 1 | L63 18DG/RD (EXPORT) | LEFT TURN/STOP SIGNAL |
| 2 | L63 18DG/RD (EXCEPT EXPORT) | LEFT TURN/STOP SIGNAL |
| 2 | L1 20WT/LG (EXPORT) | BACKUP LAMP FEED |
| 3 | L7 18WT/YL (EXCEPT EXPORT) | HEADLAMP SWITCH OUTPUT |
| 3 | L50 18WT/TN (EXPORT) | BRAKE LAMP SWITCH OUTPUT |
| 4 | L62 18BR/RD (EXCEPT EXPORT) | RIGHT TURN/STOP SIGNAL |
| 4 | L7 18WT/YL (EXPORT) | HEADLAMP SWITCH OUTPUT |
