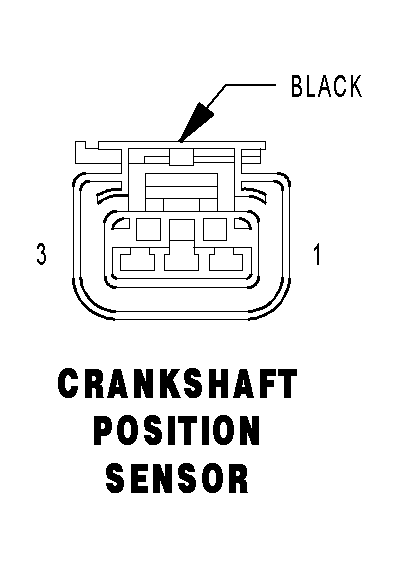

Crankshaft Position Sensor Connector End View
CRANKSHAFT POSITION SENSOR - BLACK 3 WAY
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
F855 20PK/YL |
5 VOLT SUPPLY |
| 2 |
K900 20DB/DG |
SENSOR GROUND |
| 3 |
K24 18BR/LB (EXCEPT MAN 6 SPD TRANS) |
CKP SIGNAL |
| 3 |
K24 20BR/LB (MAN 6 SPD TRANS) |
CKP SIGNAL |
