Circuit Breaker Connector End View

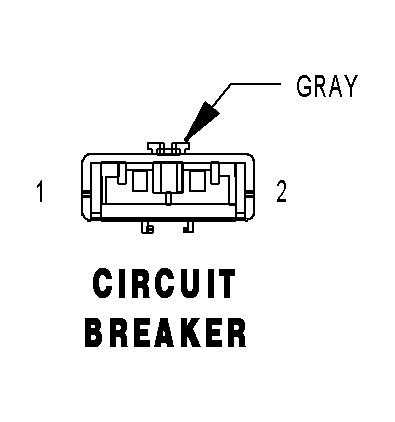

CIRCUIT BREAKER - GRAY 2 WAY

GCTJ680053Courtesy of DAIMLERCHRYSLER CORP.
CB NO. AMPS FUSED CIRCUIT FUNCTION
1 25A A940 12RD FUSED B(+)
2 25A A333 14WT/RD FUSED B(+)
