Stabilizer Bar: Installation

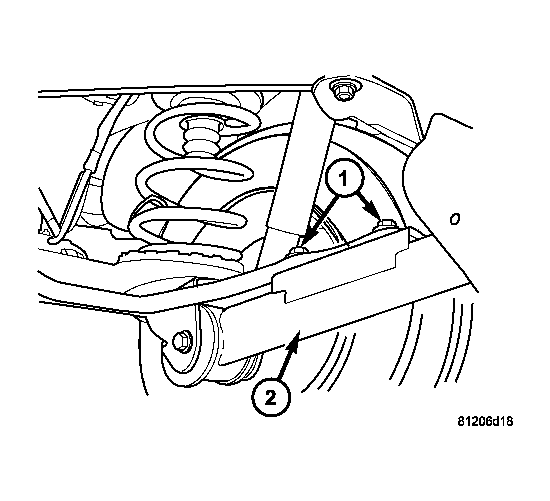

Fig 1: Stabilizer Bar Mounts
GC0025573Courtesy of DAIMLERCHRYSLER CORP.
1 - STABILIZER BAR MOUNTING BOLTS
2 - LOWER SUSPENSION ARM
  1. Position the stabilizer bar over the axle and install the bolts (1) to the lower suspension arm (2). See Fig 1. Ensure the bar is centered with equal spacing on both sides. Tighten the bolts to 99 N.m (73 ft. lbs.).
  2. Remove support and lower the vehicle.
