Right Side

  1. Install the spring to the shock (if removed). (Refer to SUSPENSION/FRONT/SPRING - INSTALLATION) .
  2. Install the shock assembly to the vehicle.
  3. Install the four upper shock mounting nuts. Tighten the nuts to 108 N.m (80 ft.lbs.).

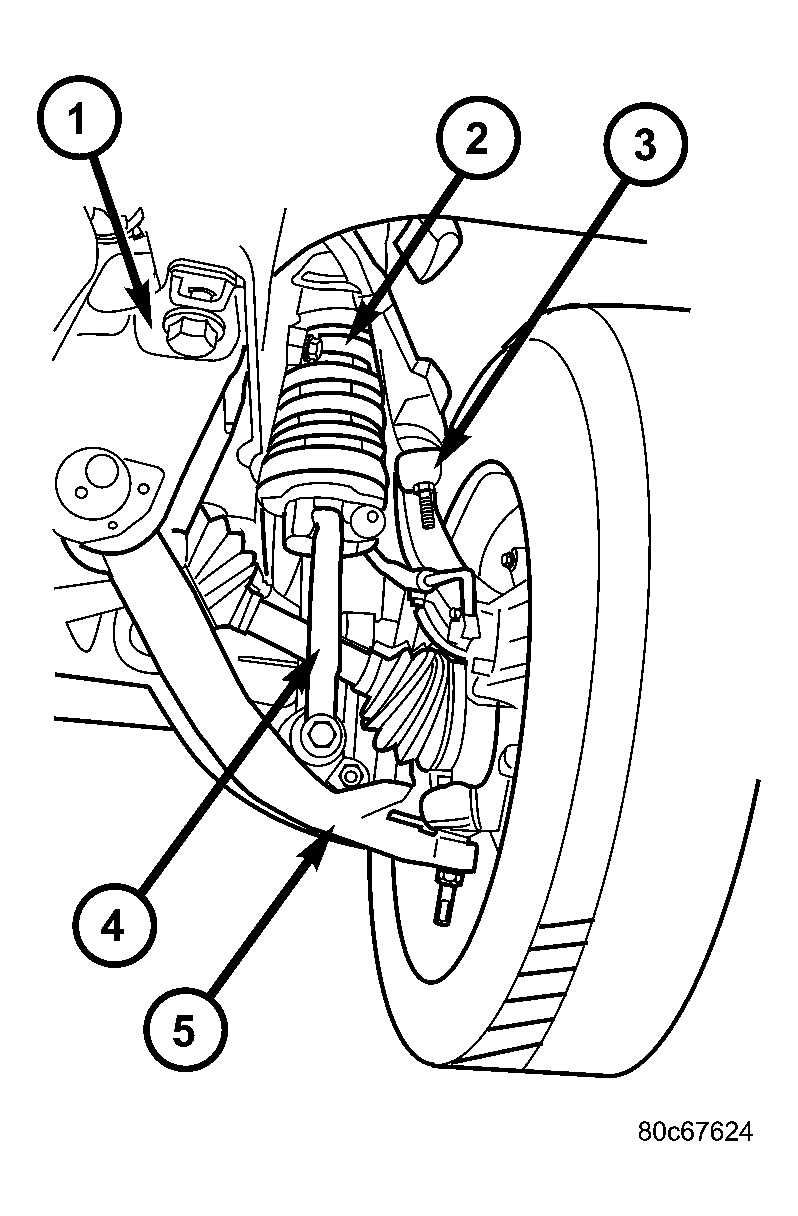

    Fig 1: Shock & Clevis Assembly
    GC0025563Courtesy of DAIMLERCHRYSLER CORP.
    1 - FRONT CRADLE
    2 - SPRING & SHOCK ASSEMBLY
    3 - STEERING KNUCKLE
    4 - CLEVIS BRACKET
    5 - LOWER CONTROL ARM
  4. Install the clevis bracket (4) at the shock (2). (Refer to SUSPENSION/FRONT/CLEVIS BRACKET - INSTALLATION) . Tighten the bolt to 61 N.m (45 ft.lbs.).
  5. Raise the lower control into place and reconnect the lower ball joint nut. Tighten the nut to 81 N.m (60 ft.lbs.).
  6. Install the clevis bracket (4) at the lower control arm (5). (Refer to SUSPENSION/FRONT/CLEVIS BRACKET - INSTALLATION) . Tighten the bolt to 150 N.m (110 ft.lbs.).
  7. Install the lower stabilizer link at the lower control arm. Tighten the bolt to 136 N.m (100 ft.lbs.) (Refer to SUSPENSION/FRONT/STABILIZER LINK - INSTALLATION) .
  8. Install the right tire and wheel assembly. (Refer to TIRES/WHEELS/WHEELS - STANDARD PROCEDURE) .
  9. Lower the vehicle.
  10. Install the cruise control servo mounting nuts.
  11. Install the airbox (Refer to ENGINE/AIR INTAKE SYSTEM/AIR CLEANER ELEMENT - INSTALLATION) .
