Left Side

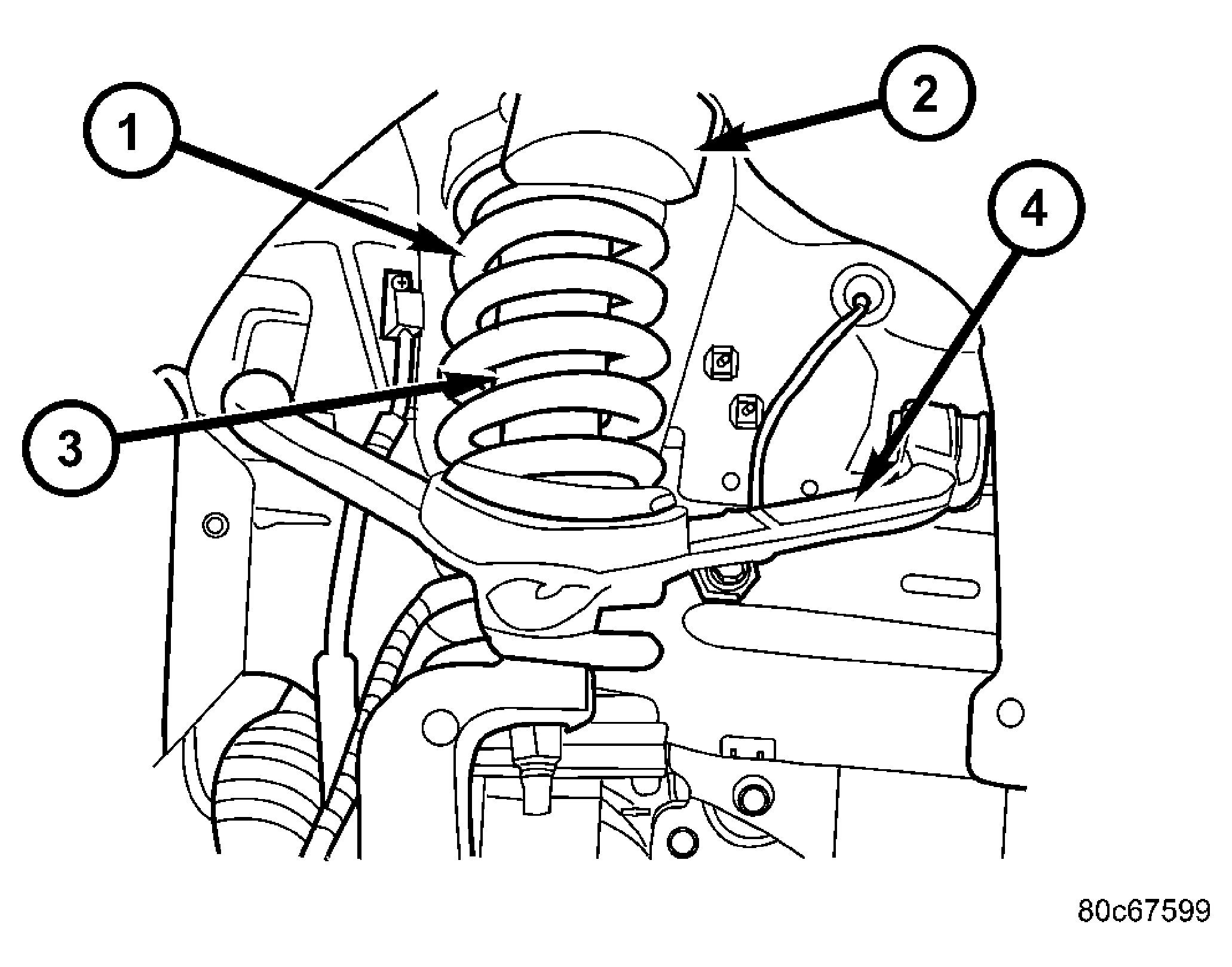

Fig 1: Shock Assembly
GC0025562Courtesy of DAIMLERCHRYSLER CORP.
1 - SPRING
2 - JOUNCE BUMPER
3 - SHOCK
4 - UPPER CONTROL ARM
  1. Install the spring (1) to the shock (3) (if removed).
  2. Install the shock assembly (3) to the vehicle.
  3. Install the four upper shock mounting nuts. Tighten the nuts to 108 N.m (80 ft.lbs.).
    Fig 2: Clevis Bracket
    GC0024961Courtesy of DAIMLERCHRYSLER CORP.
  4. Install the clevis bracket (2) at the shock. (Refer to SUSPENSION/FRONT/CLEVIS BRACKET - INSTALLATION) . Tighten the bolt to 61N.m (45 ft.lbs.).
  5. Raise the lower control into place and reconnect the lower ball joint nut. Tighten the nut to 81 N.m (60 ft.lbs.).
  6. Install the clevis bracket (2) at the lower control arm. (Refer to SUSPENSION/FRONT/CLEVIS BRACKET - INSTALLATION) . Tighten the bolt to 150 N.m (110 ft.lbs.).
  7. Install the lower stabilizer link at the lower control arm. Tighten the bolt to 136 N.m (100 ft.lbs.) (Refer to SUSPENSION/FRONT/STABILIZER LINK - INSTALLATION) .
  8. Install the left tire and wheel assembly. (Refer to TIRES/WHEELS/WHEELS - STANDARD PROCEDURE) .
  9. Lower the vehicle.
  10. Reconnect the battery temperature sensor.
  11. Install the battery tray (Refer to ELECTRICAL/BATTERY SYSTEM/TRAY - INSTALLATION) .
  12. Install the battery (Refer to ELECTRICAL/BATTERY SYSTEM/BATTERY - INSTALLATION) .
  13. Reconnect the battery cables.
