Clevis Bracket Bushing

NOTE: Extreme pressure lubrication must be used on the threaded portions of the tool. This will increase the longevity of the tool and insure proper operation during the removal and installation process.

Install the new clevis bracket bushing into the lower control arm using tools 8858-2 (driver), 8858-1 (receiver) and the bearing with the threaded rod 8839 making sure to properly orient the bushing in the control. See Fig 1.

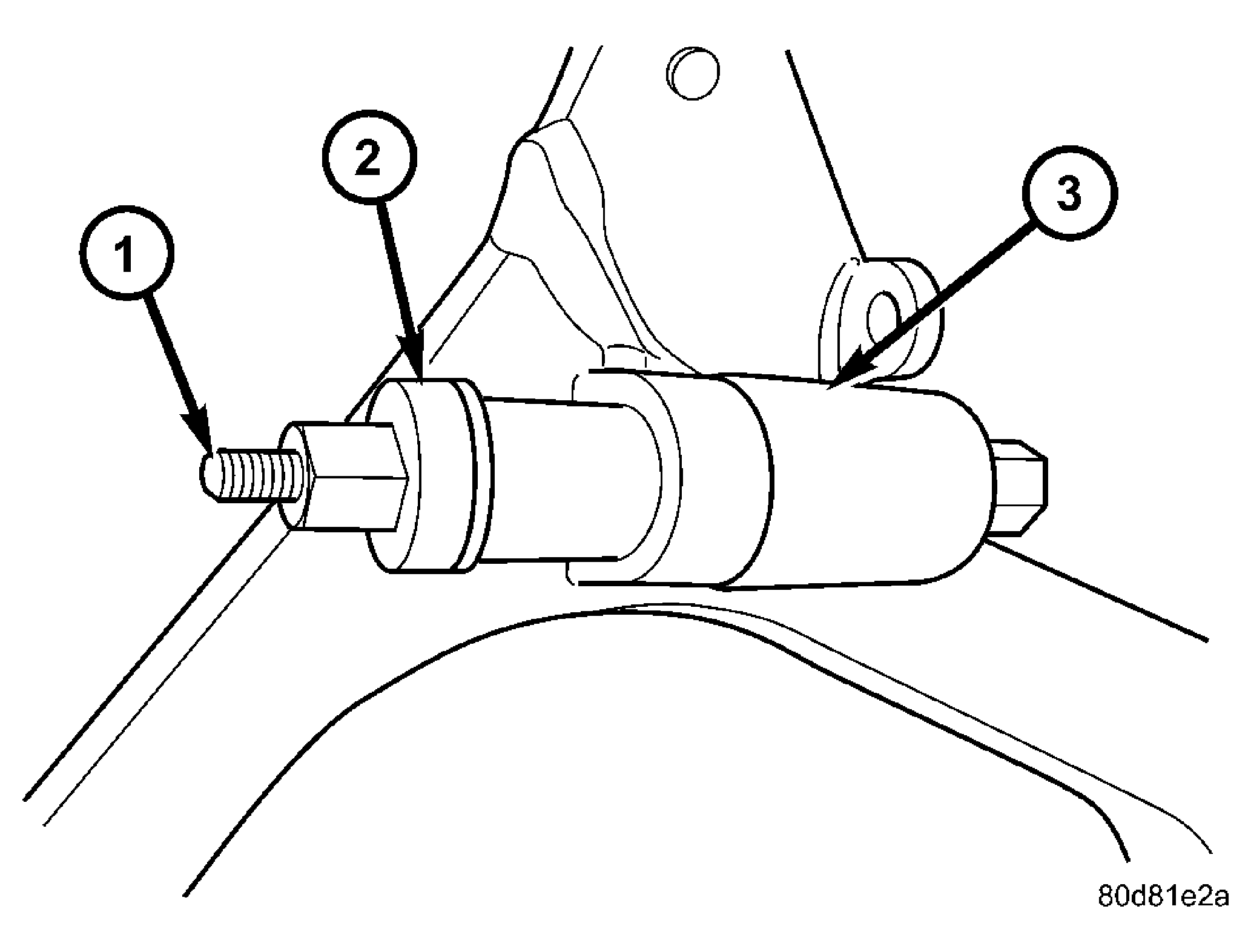

Fig 1: Clevis Bracket Bushing

Courtesy of DAIMLERCHRYSLER CORP.

1 - 8839 THREADED ROD

2 - 8858-2 DRIVER

3 - 8858-1 RECEIVER

Install the clevis bracket (Refer to SUSPENSION/FRONT/CLEVIS BRACKET - INSTALLATION) .
