Starter Motor: Installation: 2.4L

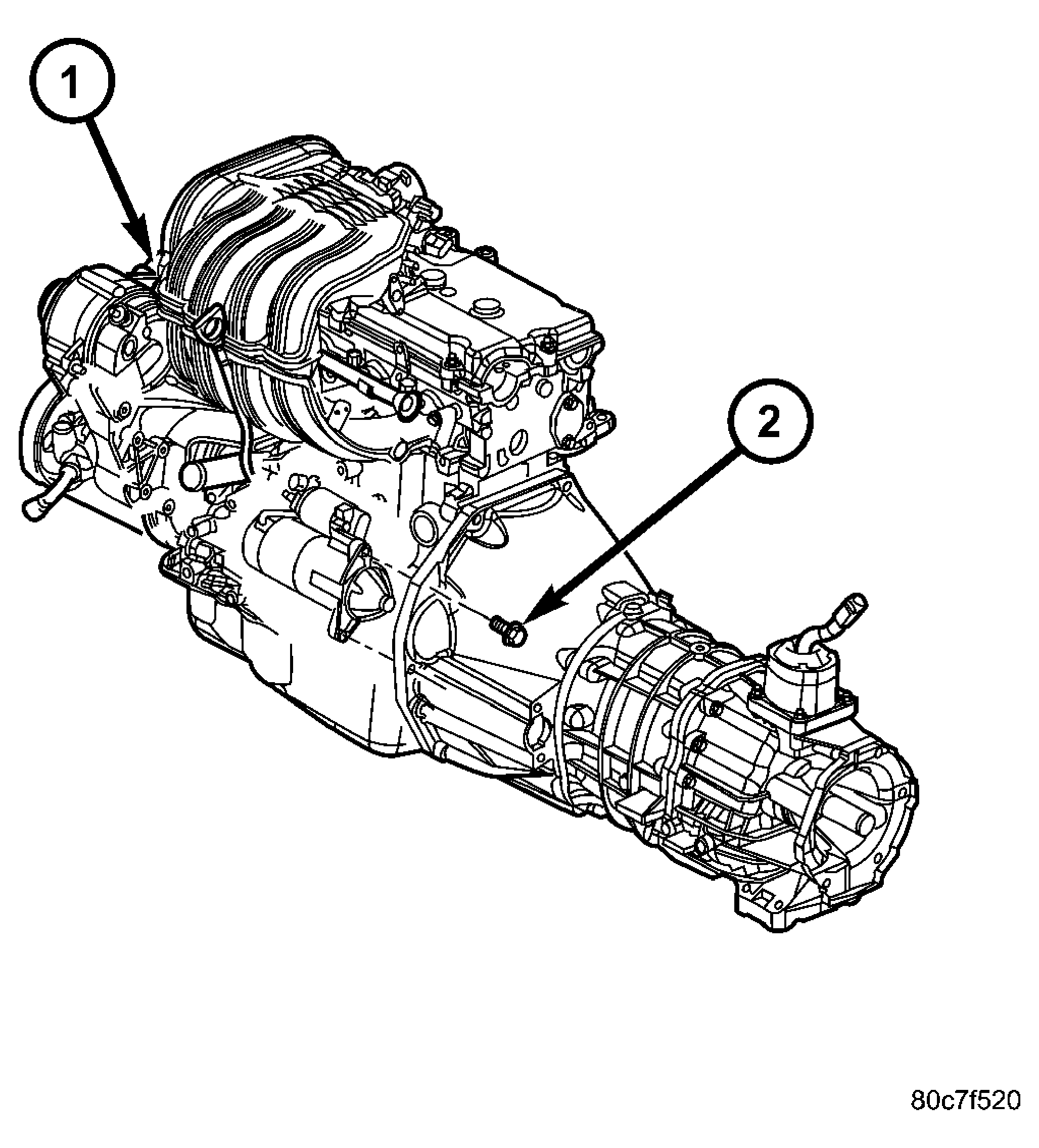

Fig 1: Starter - 2.4L
GC0026386Courtesy of DAIMLERCHRYSLER CORP.
1 - STARTER
2 - MOUNTING BOLTS (2)
  1. Position starter into bellhousing and install two bolts (2) and tighten to 54 N.m (40 ft. lbs.).
  2. Install battery cable and nut to stud on starter solenoid and tighten to 11 N.m (100 in. lbs.).
  3. Install solenoid wire connector to solenoid terminal.
  4. Lower vehicle.
  5. Connect negative battery cable.
