Windshield Washer Pump Connector End View
Windshield Washer Pump Connector End View

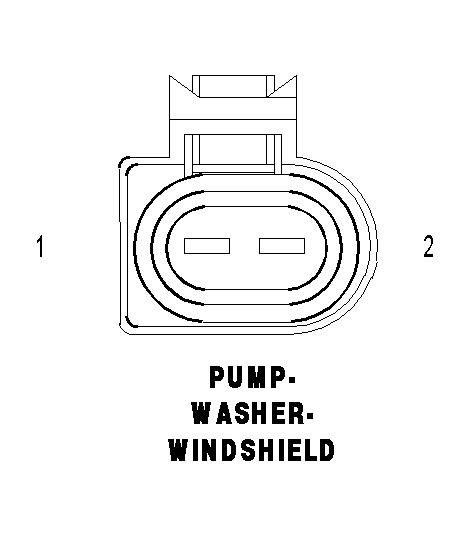

PUMP-WASHER-WINDSHIELD - 2 WAY
Courtesy of DAIMLERCHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
W20 20BR/YL
WASHER MOTOR SENSE
2
W33 20BR/DG
WASHER PUMP DRIVER
