Throttle Position Sensor (Gas) Connector End View

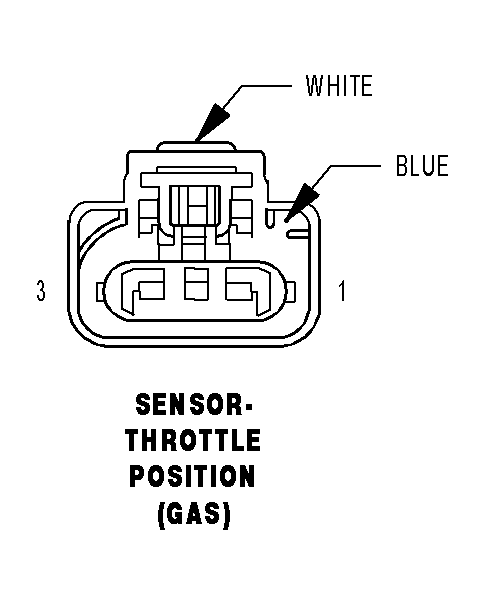

SENSOR-THROTTLE POSITION (GAS) - WHITE/BLUE 3 WAY

GCKJ680312Courtesy of DAIMLERCHRYSLER CORP.
CAV CIRCUIT FUNCTION
1 F855 20PK/YL 5 VOLT SUPPLY
2 K900 20DB/DG SENSOR GROUND
3 K22 20BR/OR TP SIGNAL
