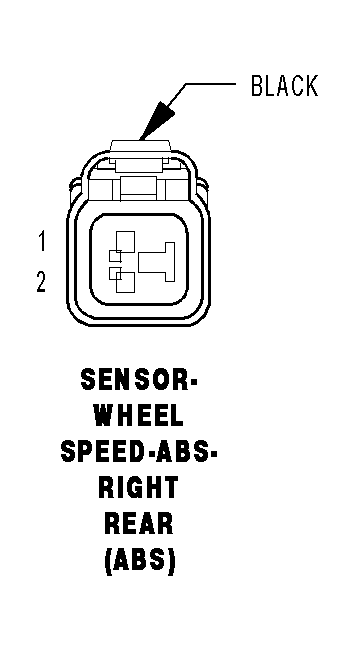

Right Rear Wheel Speed Sensor Connector End View
SENSOR-WHEEL SPEED-ABS-RIGHT REAR (ABS) - BLACK
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
B2 18DG/LB |
RIGHT REAR WHEEL SPEED SENSOR 12 VOLT SUPPLY |
| 2 |
B1 18DG/OR |
RIGHT REAR WHEEL SPEED SIGNAL |
