Red Brake Warning Indicator Switch Connector End View

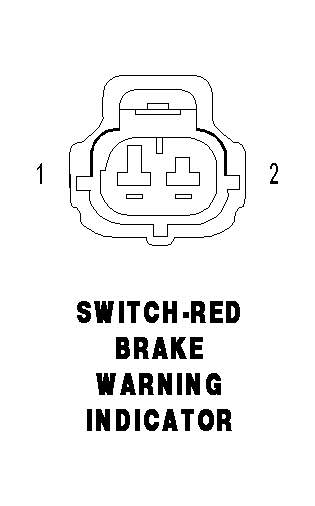

SWITCH-RED BRAKE WARNING INDICATOR - 2 WAY

GCKJ680272Courtesy of DAIMLERCHRYSLER CORP.
CAV CIRCUIT FUNCTION
1 B20 20DG/OR RED BRAKE WARNING INDICATOR DRIVER
2 Z932 20BK GROUND
