Rear Power Outlet Connector End View

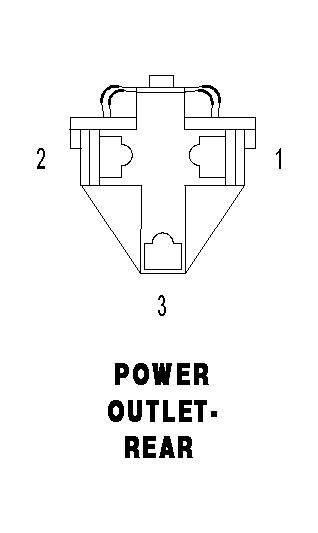

POWER OUTLET-REAR - GRAY 3 WAY

GCKJ680268Courtesy of DAIMLERCHRYSLER CORP.
CAV CIRCUIT FUNCTION
1 A305 16RD/LB FUSED B(+)
2 - -
3 Z934 16BK GROUND
