Liberty Limited, 2.8 5
>>
Repair and Diagnosis
>>
Electrical
>>
Body Electrical
>>
Connector End Views
>>
Connector Pin-Outs
>>

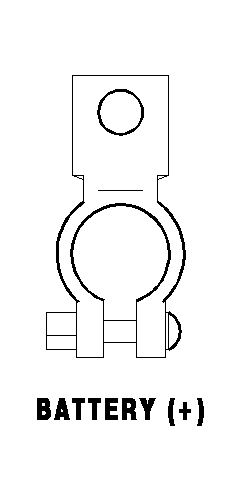

Positive Battery Connector End View
Positive Battery Connector End View
BATTERY (+)
Courtesy of DAIMLERCHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
A910 2RD (DIESEL)
B+
1
A910 6RD (GAS EXCEPT RENEGADE)
B+
1
A910 4RD (GAS RENEGADE)
B+
2
A910 6RD (EXCEPT GAS RENEGADE)
B+
Courtesy of DAIMLERCHRYSLER CORP.
