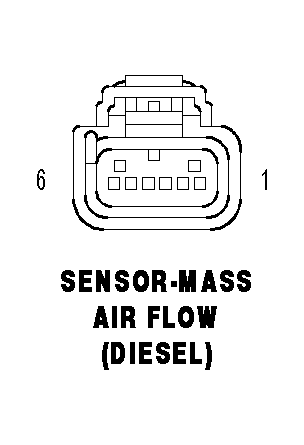

Mass Air Flow Sensor (Diesel) Connector End View
SENSOR-MASS AIR FLOW (DIESEL) - 6 WAY
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
- |
- |
| 2 |
K811 20BK/OR |
MAF SENSOR 5 VOLT SUPPLY |
| 3 |
F1 20PK/WT |
FUSED IGNITION SWITCH OUTPUT (RUN-START) |
| 4 |
- |
- |
| 5 |
K957 20BR/OR |
MAF SENSOR GROUND |
| 6 |
K157 20BR/OR |
MAF SENSOR SIGNAL |
