Left Front Fog Lamp Connector End View
Left Front Fog Lamp Connector End View

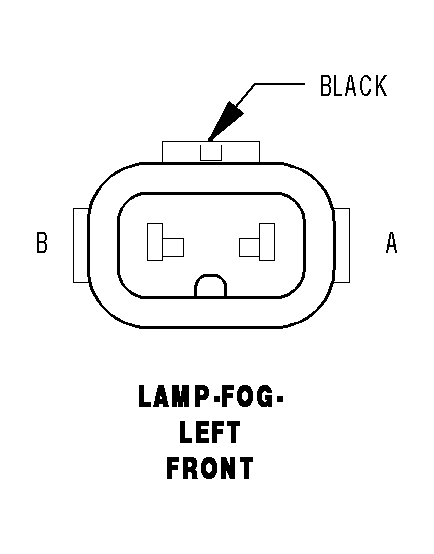

LAMP-FOG-LEFT FRONT - BLACK 2 WAY
Courtesy of DAIMLERCHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
A
Z931 16BK
GROUND
B
L89 16WT/YL
FRONT FOG LAMP RELAY OUTPUT
