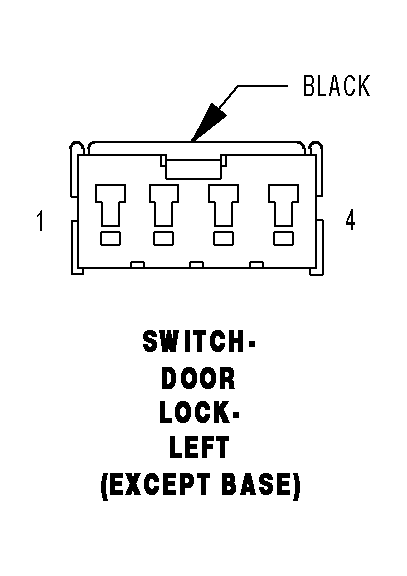

Left Door Lock Switch (Except Base) Connector End View

SWITCH-DOOR LOCK-LEFT (EXCEPT BASE) - BLACK 4 WAY

Courtesy of DAIMLERCHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	P36 20TN/DB	DOOR LOCK SWITCH MUX
2	-	-
3	-	-
4	P37 20LG/TN	DOOR LOCK SWITCH GROUND
