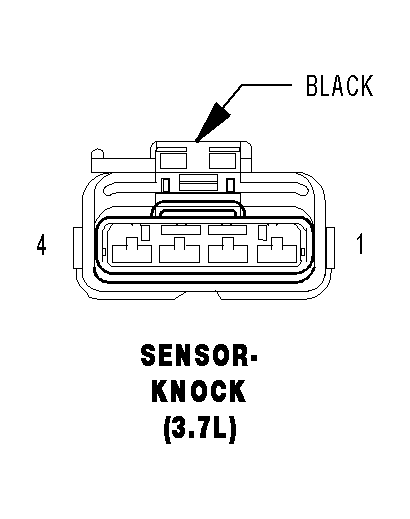

Knock Sensor (3.7L) Connector End View
SENSOR-KNOCK (3.7L) - BLACK 4 WAY
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
K942 20BR/LG |
KNOCK SENSOR NO. 1 RETURN |
| 2 |
K42 20DB/OR |
KNOCK SENSOR NO. 1 SIGNAL |
| 3 |
K924 20PK/RD |
KNOCK SENSOR NO. 2 RETURN |
| 4 |
K242 20BR/WT |
KNOCK SENSOR NO. 2 SIGNAL |
