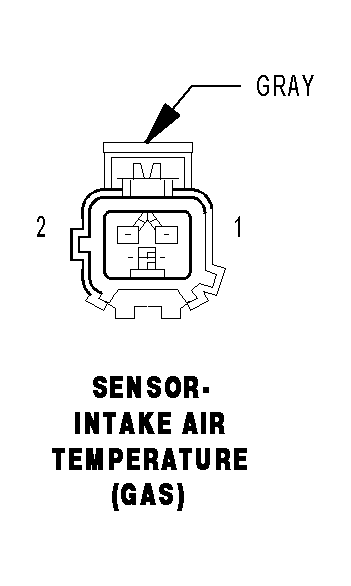

Intake Air Temperature Sensor (Gas) Connector End View

SENSOR-INTAKE AIR TEMPERATURE (GAS) - GRAY 2 WAY

Courtesy of DAIMLERCHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	K21 20BR/WT	IAT SIGNAL
2	K900 20DB/DG	SENSOR GROUND
