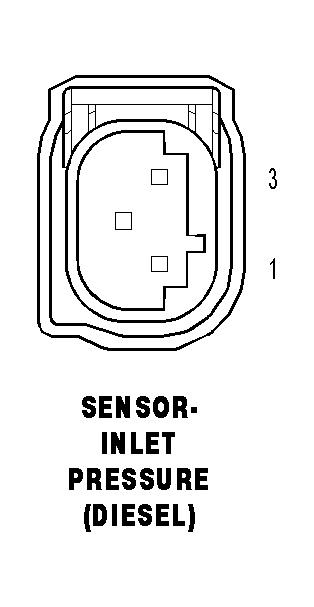

Inlet Pressure Sensor (Diesel) Connector End View
SENSOR-INLET PRESSURE (DIESEL) - 3 WAY
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
K960 20BR/LB |
INLET PRESSURE SENSOR GROUND |
| 2 |
K68 20BR/LG |
INLET PRESSURE SENSOR SIGNAL |
| 3 |
K668 20BR |
INLET PRESSURE SENSOR 5 VOLT SUPPLY |
