Idle Air Control Motor Connector End View

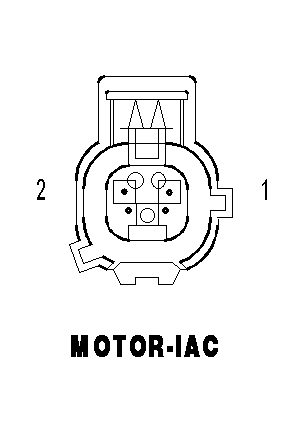

MOTOR-IAC - 2 WAY

GCKJ680186Courtesy of DAIMLERCHRYSLER CORP.
CAV CIRCUIT FUNCTION
1 K961 20BR/VT IAC SIGNAL
2 K61 20VT/GY IAC CONTROL
