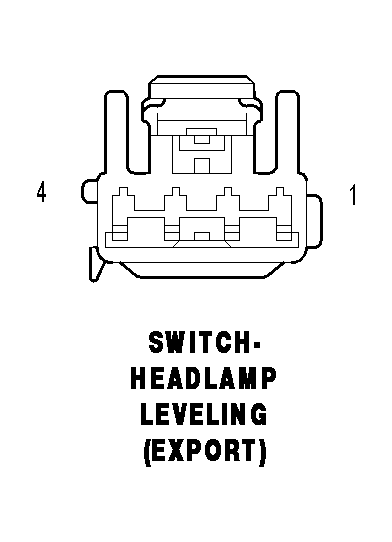

Headlamp Leveling Switch (Export) Connector End View
SWITCH-HEADLAMP LEVELING (EXPORT) - 4 WAY
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
L13 18WT/YL |
HEADLAMP ADJUST SIGNAL |
| 2 |
L78 18WT/OR |
FUSED PARK LAMP RELAY OUTPUT |
| 3 |
Z945 18BK |
GROUND |
| 4 |
- |
- |
