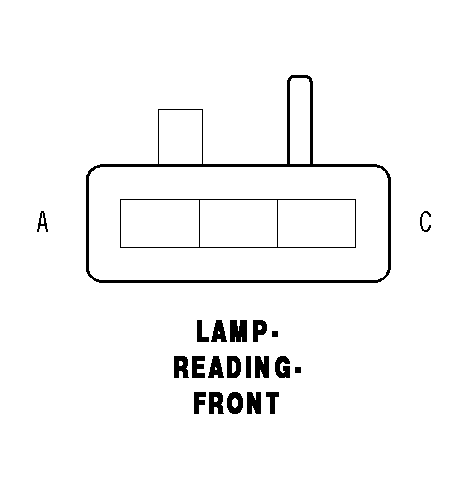

Front Reading Lamp Connector End View
Front Reading Lamp Connector End View
LAMP-READING-FRONT - 3 WAY
Courtesy of DAIMLERCHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
A
M20 20YL/LB
COURTESY LAMP LOAD SHED
B
A908 20RD
FUSED B(+)
C
Z327 20BK/WT
GROUND
Courtesy of DAIMLERCHRYSLER CORP.
