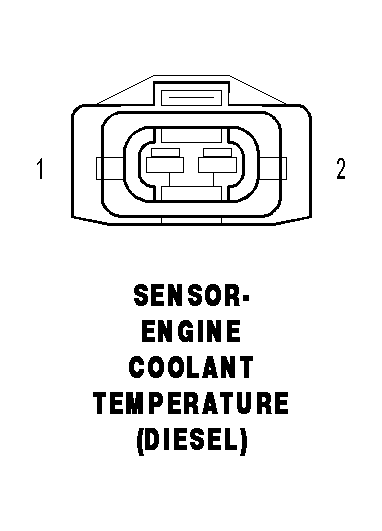

Engine Coolant Temperature Sensor (Diesel) Connector End View

SENSOR-ENGINE COOLANT TEMPERATURE (DIESEL) - 2 WAY

Courtesy of DAIMLERCHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	K2 20VT/OR	ECT SENSOR SIGNAL
2	K900 20DB/DG	SENSOR GROUND
