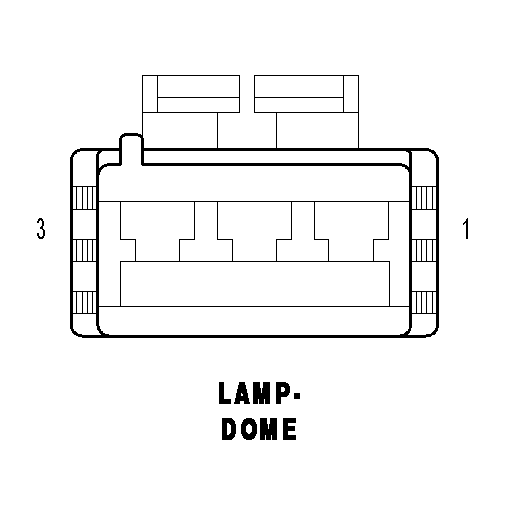

Dome Lamp Connector End View

LAMP-DOME - 3 WAY

Courtesy of DAIMLERCHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	Z327 20BK/WT (EXCEPT BASE)	GROUND
2	A908 18RD (BASE)	FUSED B(+)
2	M20 20YL/LB (EXCEPT BASE)	COURTESY LAMP LOAD SHED
3	Z327 20RD (BASE)	GROUND
3	A908 20RD (EXCEPT BASE)	FUSED B(+)
