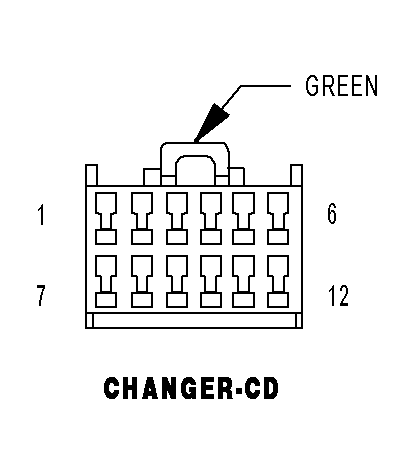

CD Changer Connector End View
CHANGER-CD - GREEN 12 WAY
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
X41 20DG/WT |
AUDIO MUX LEFT |
| 2 |
- |
|
| 3 |
- |
|
| 4 |
Z515 20BK |
GROUND |
| 5 |
X112 20LG/GY |
IGNITION RUN/ACC SIGNAL |
| 6 |
X160 20GY/YL |
FUSED B(+) |
| 7 |
X40 20GY/WT |
AUDIO MUX RIGHT |
| 8 |
X140 20GY/OR |
SHIELD |
| 9 |
- |
|
| 10 |
- |
|
| 11 |
X235 20GY |
AUDIO RETURN |
| 12 |
D25 20WT/VT |
PCI BUS |
